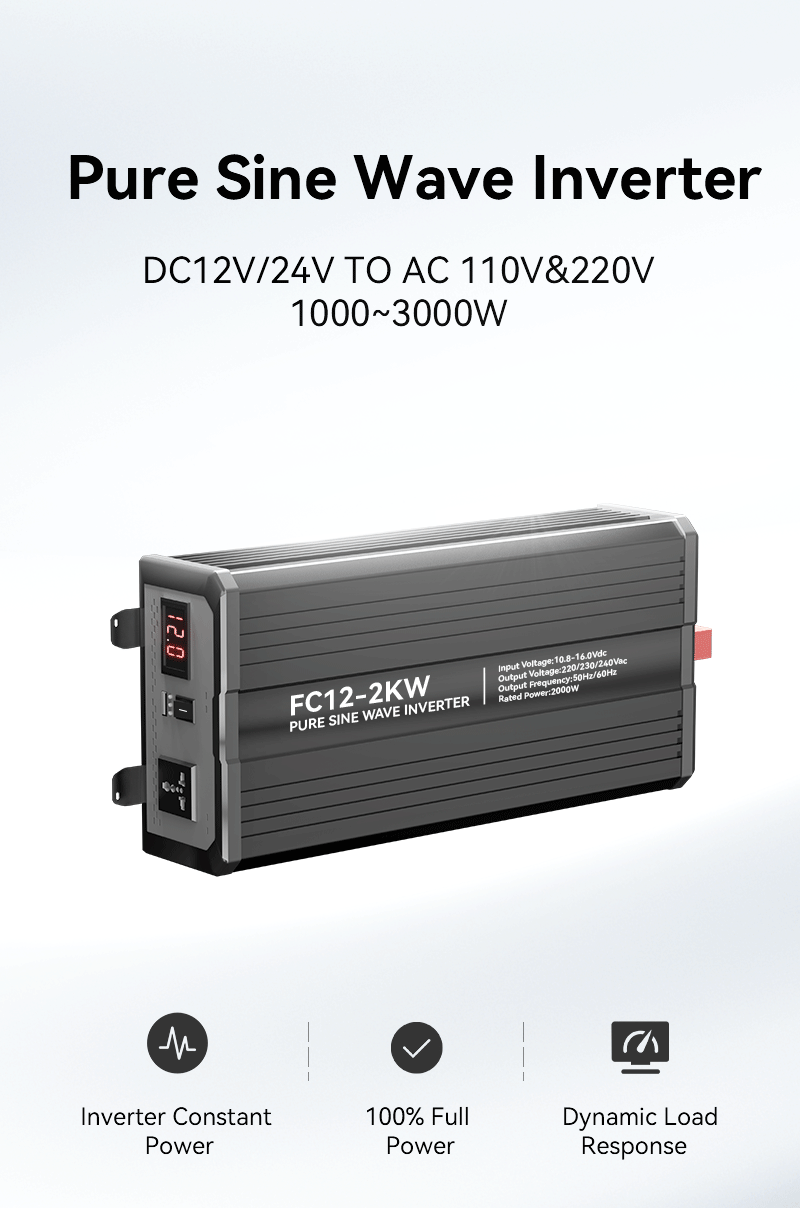

1500W 2000W 3000W Pure Sine Wave inverter

Product introduction

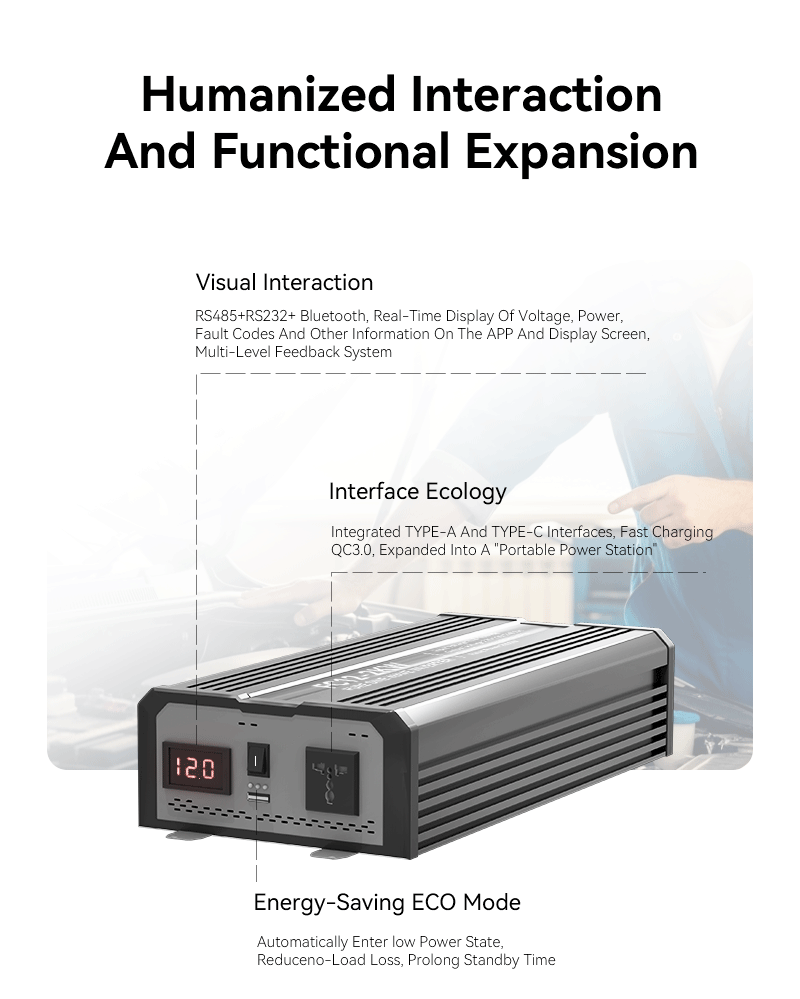

Pure sine wave inverter, using advanced SPWM modulation technology, outputs pure power with distortion rate ≤ 4% and conversion efficiency>90%. It can adapt to all electrical appliances and has low noise and lower operating temperature, which can extend the service life of electrical appliances; Built in Bluetooth function, supports monitoring battery and appliance operation data through a mobile app within a 10 meter accessible range; The working environment temperature range is from 4 ° F to 140 ° F, which can meet the needs of various electrical scenarios.

Quantity:

Inquire

Add to Basket Download

Product details

Rated Input Power：1500W、2000W、3000W

Rated Frequency：50Hz/60Hz±1Hz

Output Waveform：Pure Sine Wave

Operating Humidity：≤95%

Noise：<60dB

Protection Level：IP20

Working Temperature：0℃~40℃

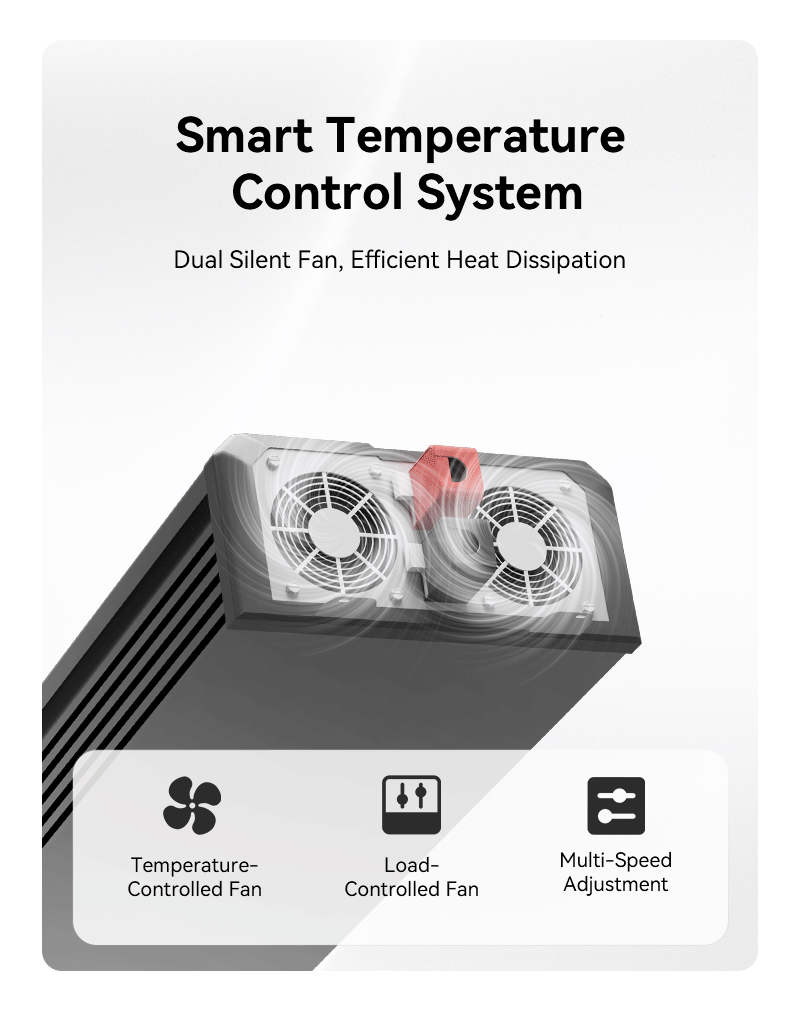

Cooling Method：Natural Cooling + Intelligent Air Cooling

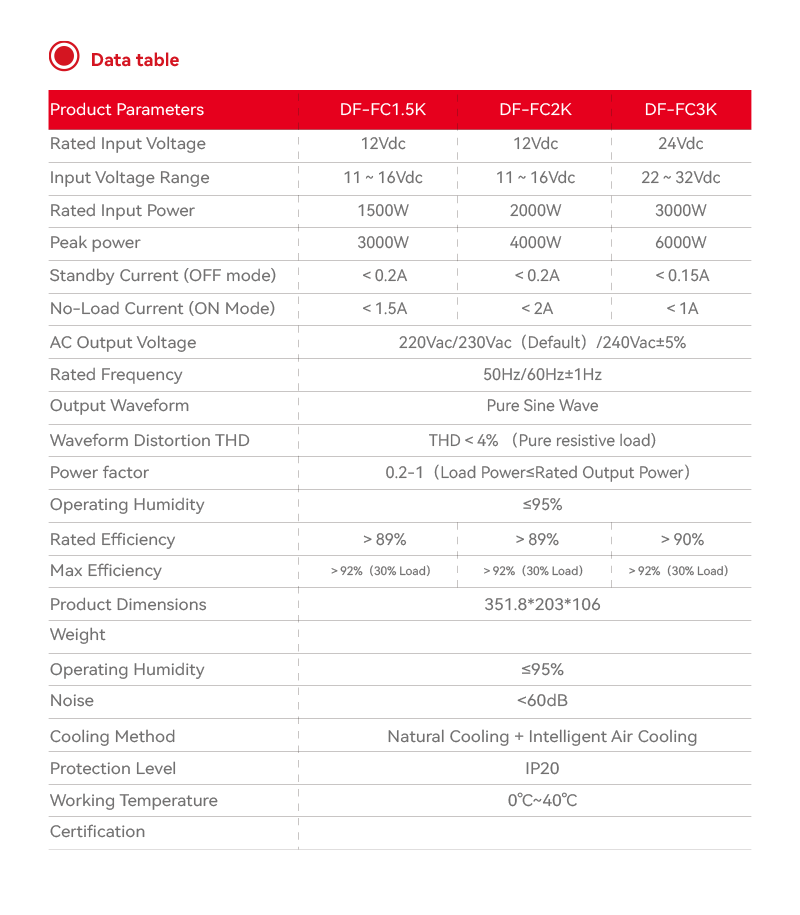

►Product Parameters

Product Parameters	DF-FC1.5K	DF-FC2K	DF-FC3K
Rated Input Voltage	12Vdc	12Vdc	24Vdc
Input Voltage Range	11~16Vdc	11~16Vdc	22~32Vdc
Rated Input Power	1500W	2000W	3000W
Peak power	3000W	4000W	6000W
Standby Current (OFF mode)	<0.2A	<0.2A <0.15A
No-Load Current (ON Mode)	<1.5A	<2A <1A
AC Output Voltage	220Vac/230Vac (Default) /240Vac±5%
Rated Frequency	50Hz/60Hz±1Hz
Output Waveform	Pure Sine Wave
Waveform Distortion THD	THD<4% (Pure resistive load)
Power factor	0.2-1 (Load PowersRated Output Power)
Operating Humidity	≤95%
Rated Efficiency	>89%	>89%	>90%
Max Efficiency	>92% (30% Load)	>92% (30% Load)	>92% (30% Load)
Product Dimensions	351.8203106
Weight
Operating Humidity	≤95%
Noise	<60dB
Cooling Method	Natural Cooling+Intelligent Air Cooling
Protection Level	IP20
Working Temperature	0℃~40℃

►Product Details
