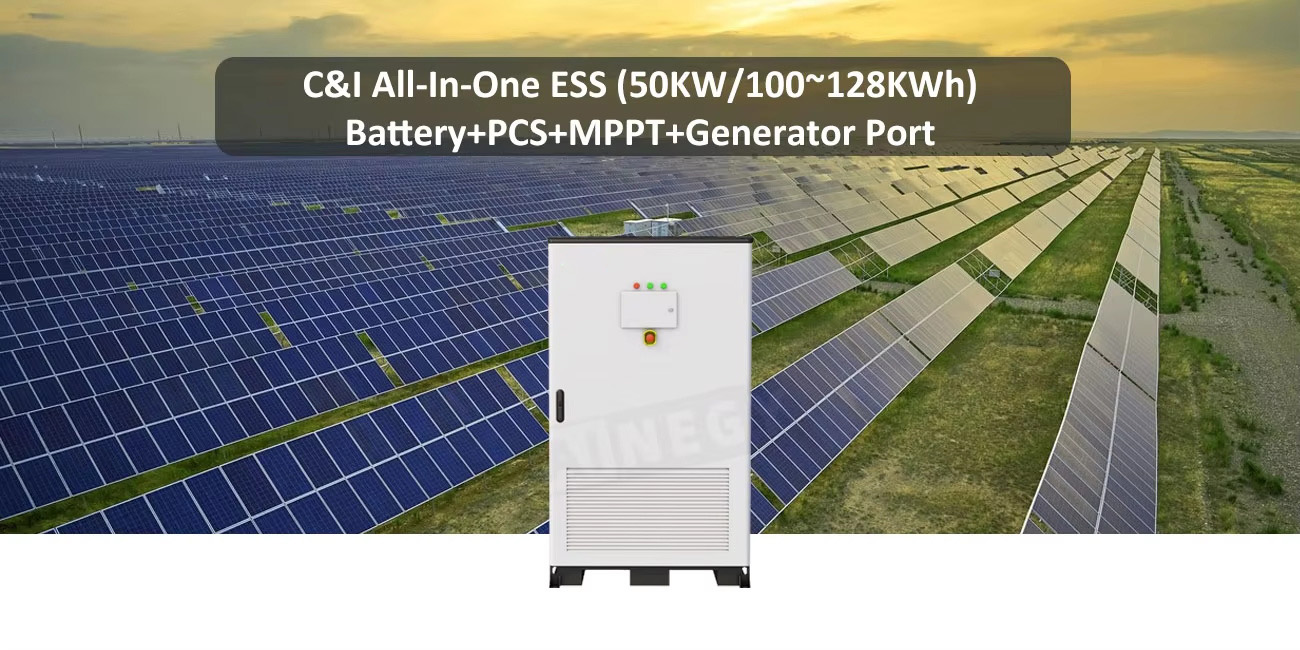

50kW 100kWh All-In-One Industrial & Commercial Energy Storage Cabinets OEM ODM
Product introduction

50KW/100kWh integrated IP54 off grid hybrid solar energy storage system uses lithium iron phosphate (LiFePO4) batteries, integrates hybrid inverters, MPPT controllers, generator interfaces, and BMS/PCS/EMS systems. It also has multi-level fire protection and air conditioning cooling functions, supports off grid, grid connected, and UPS modes, and can accommodate up to 5 units in parallel. The AC rated power is 50KW, the PV maximum power is 70KW, and the working temperature range is -10~55 ℃. It is suitable for commercial, farm, industrial and other scenarios.


Battery type: LiFePO4

Rated energy: 100KWh

PV maximum power: 70KW

AC (grid connected) rated power: 50KW

AC (off grid) rated power: 50KW

IP protection level: IP54

Communication type: RS485/WiFi

Quantity:
Product details

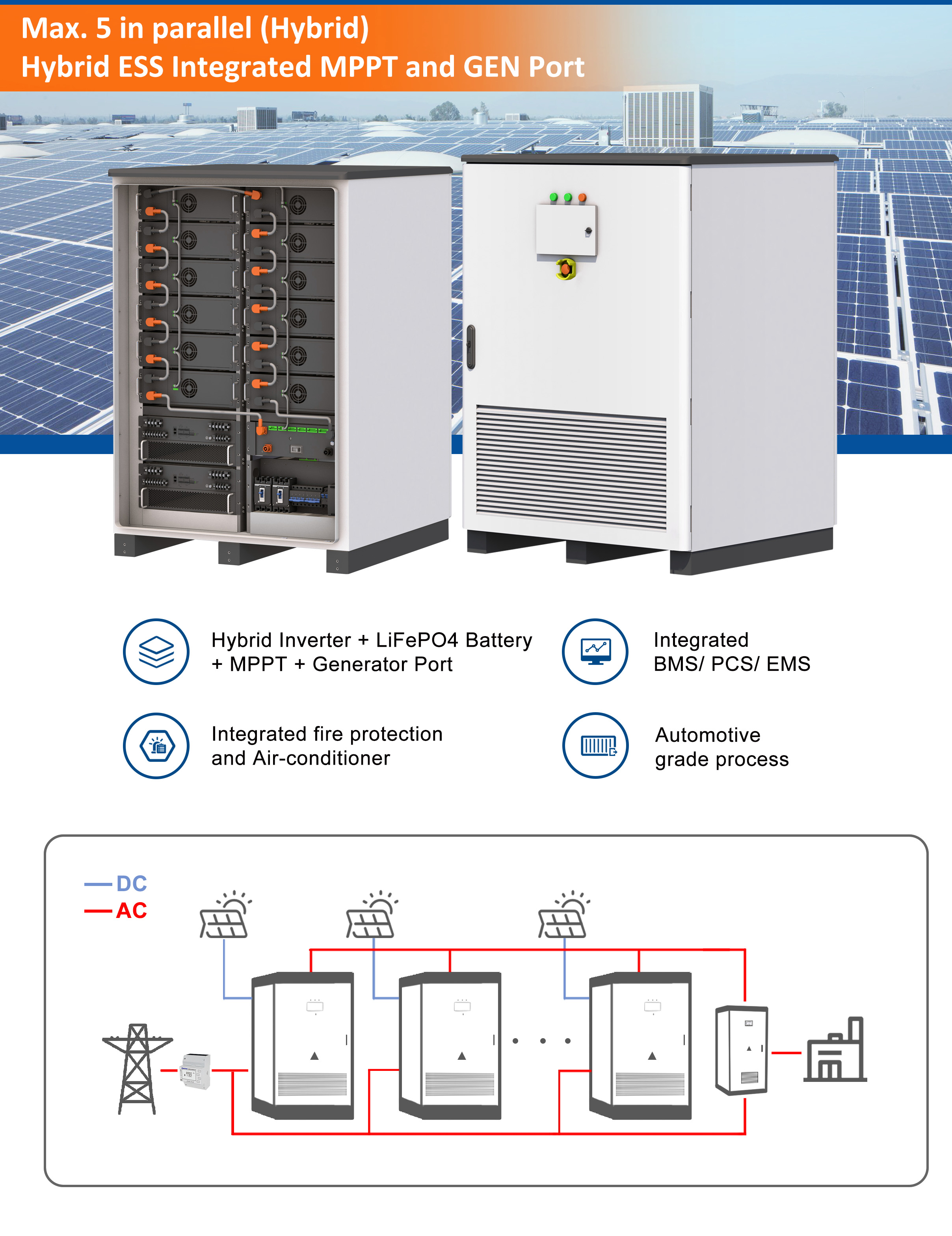

►Product Features

●Hybrid Inverter + LiFePO4 Battery+ MPPT+ Generator Port

●Integrated fire protectionand Air-conditioner

●IntegratedBMS/PCS/EMS

●Automotivegrade process

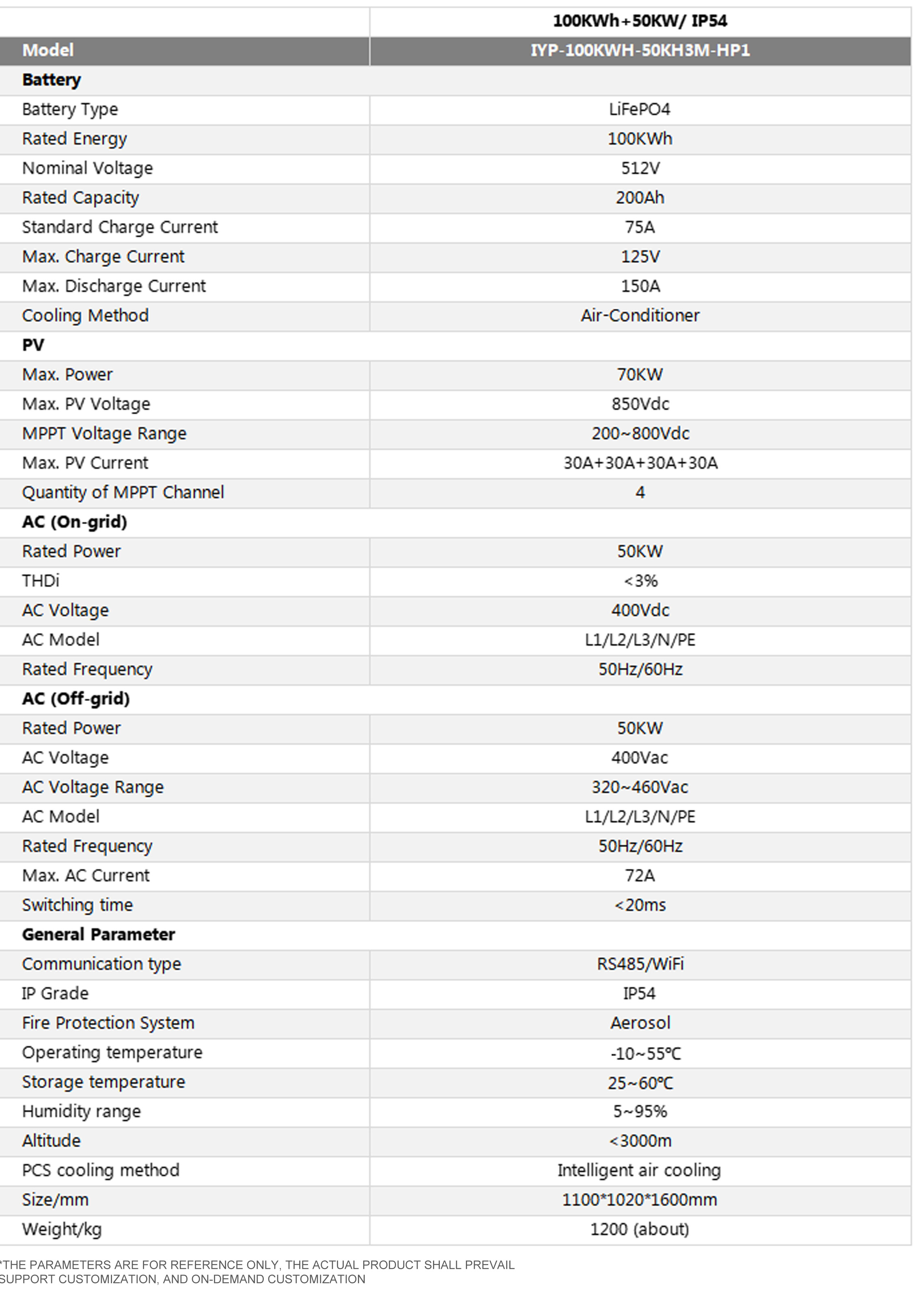

►Product Parameters


100KWh+50KW/IP54
ModelIYP-100KWH-50KH3M-HP1
Battery
Battery TypeLiFePO4
Rated Energy100KWh
Nominal Voltage512V
Rated Capacity200Ah
Standard Charge Current75A
Max.Charge Current125V
Max.Discharge Current150A
Cooling MethodAir-Conditioner
PV
Max.Power70KW
Max.PV Voltage850Vdc
MPPT Voltage Range200~800Vdc
Max.PV Current30A+30A+30A+30A
Quantity of MPPT Channel4
AC(On-grid)
Rated Power50KW
THDi<3%
AC Voltage400Vdc
AC ModelL1/L2/L3/N/PE
Rated Frequency50Hz/60Hz
AC(Off-grid)
Rated Power50KW
AC Voltage400Vac
AC Voltage Range320~460Vac
AC ModelL1/L2/L3/N/PE
Rated Frequency50Hz/60Hz
Max.AC Current72A
Switching time<20ms
General Parameter
Communication typeRS485/WiFi
IP GradeIP54
Fire Protection SystemAerosol
Operating temperature-10~55℃
Storage temperature25~60℃
Humidity range5~95%
Altitude<3000m
PCS cooling methodIntelligent air cooling
Size/mm1100*1020*1600mm
Weight/kg1200 (about)


►Product Details
