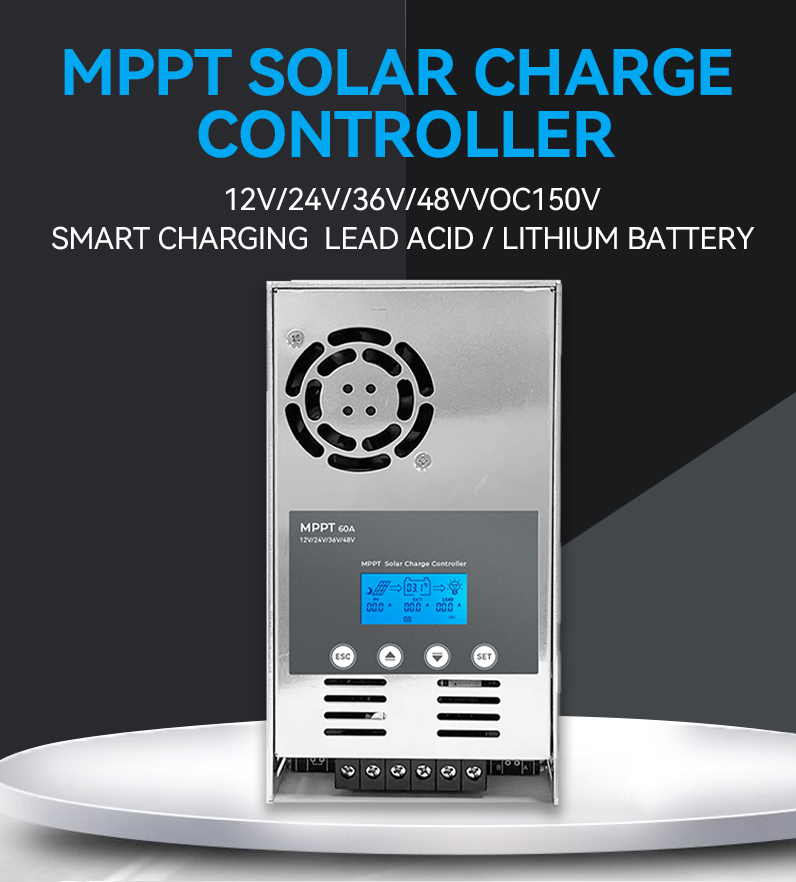

MPPT-A6048 Solar Charging Controller is an efficient device suitable for solar system control and panel regulation. It supports 24-hour uninterrupted operation and is compatible with 12V/24V/36V/48V automatic voltage recognition. It can adapt to lead-acid and lithium batteries and adopts a three-stage MPPT charging mode of constant voltage, constant current, and float charging. The tracking efficiency is ≥ 98.1%, the maximum conversion efficiency is 99%, the maximum photovoltaic power is 2800W, and the maximum photovoltaic voltage is 180V. It has Smart BT monitoring and optional RS 485/232 communication function. The working temperature range is -20 ℃~+50 ℃, and the storage temperature range is -40 ℃~+70 ℃. It has passed ROHS, CE, and FCC certifications and enjoys a one-year warranty. It can provide stable and reliable support for solar systems. Charging control and comprehensive protection.
►Product Features
【Software Update MPPT Controller 】100% MPPT solar charge controller, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic 12V/24V/36V/48V battery voltage detection.

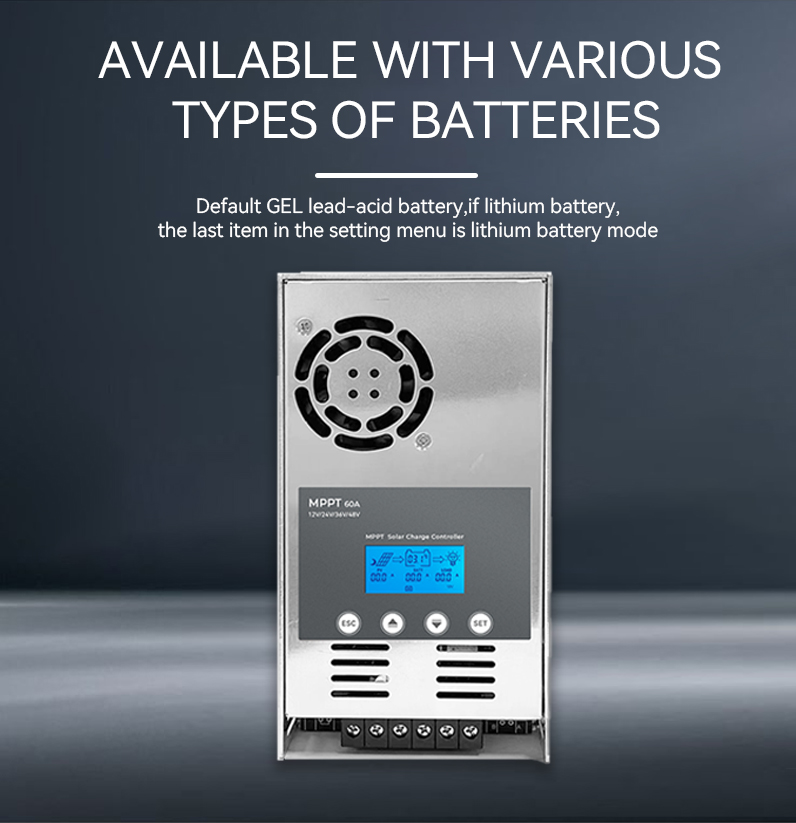

【Multiple Battery Adaptation】 Can be set Lithium, Lifepo4, Li / Vented / Flooded / Sealed / Gel batteries. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. Input PV 180V.

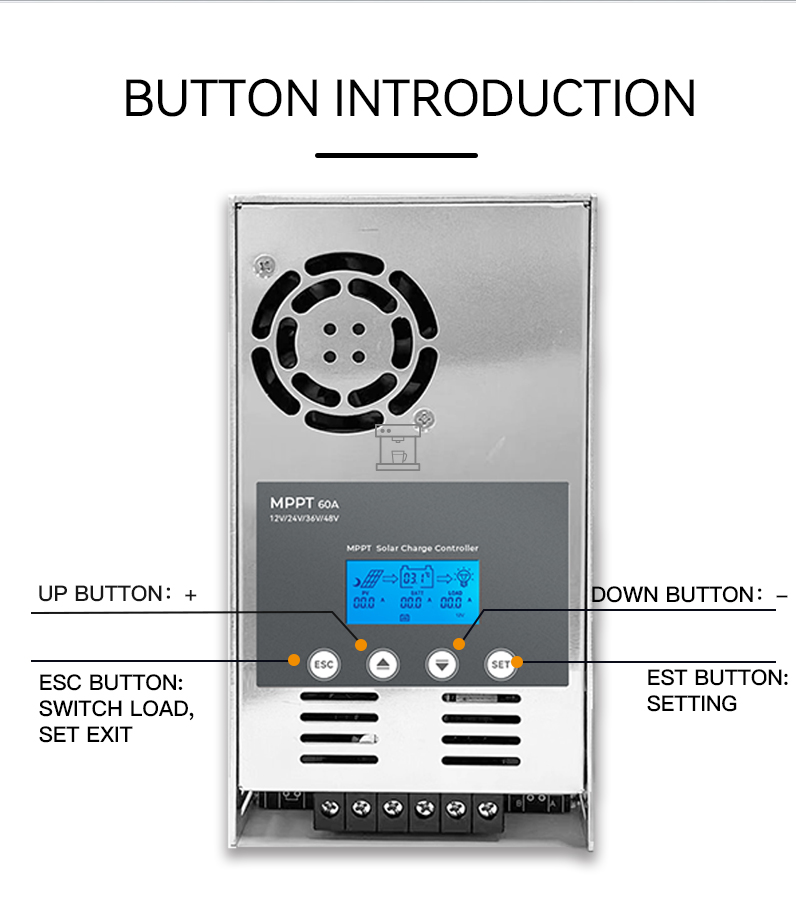

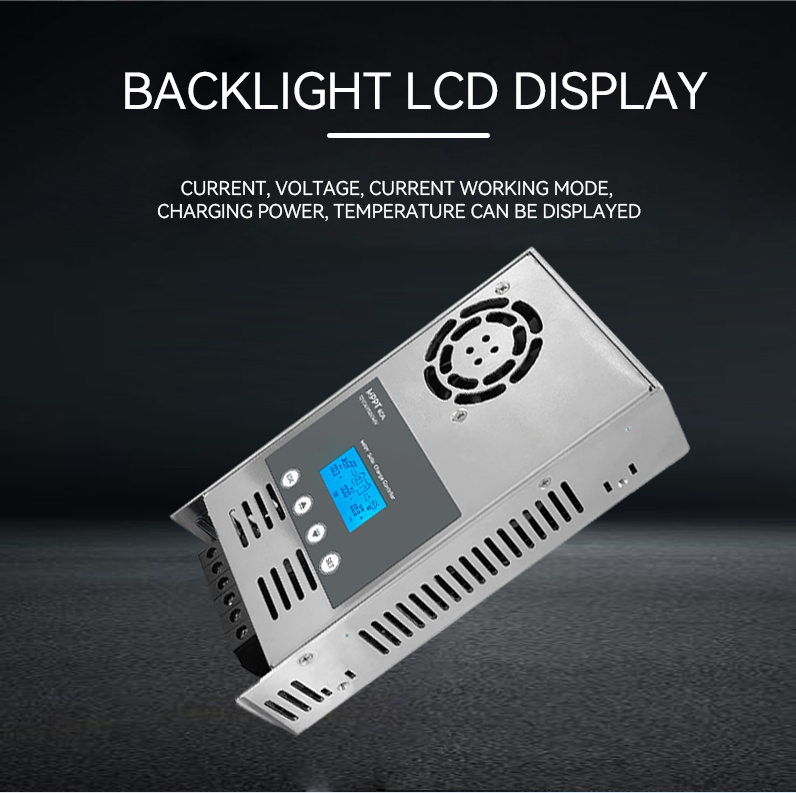

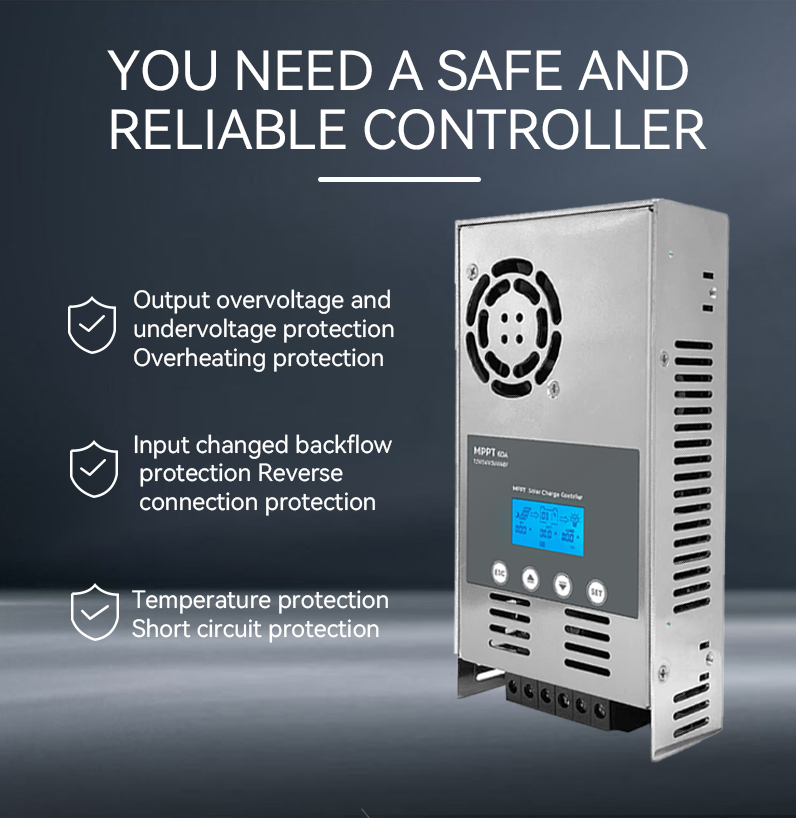

【Full System Protection】Solar charger controller Backlight LCD Display helps users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters.

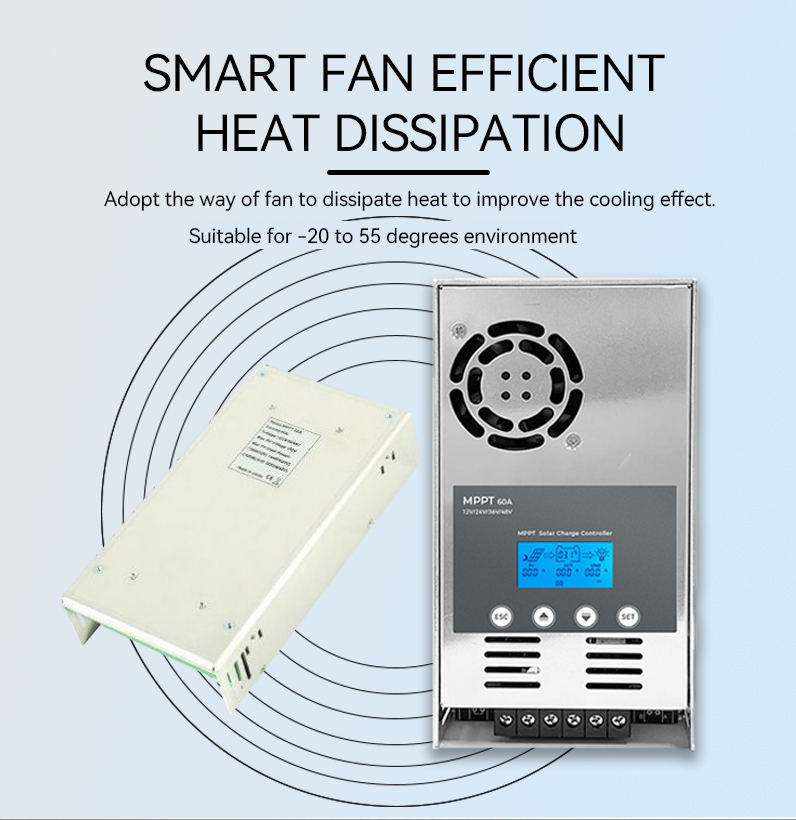

【Fan Heat Dissipation】Smart Fan-on temperature >45℃ and off < 40℃,Porous heat dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use. Suitable for RVs, Commercial Vehicles, Boats, Yachts, and Solar system.
【Optional 485 communication】Contact with us for detail.

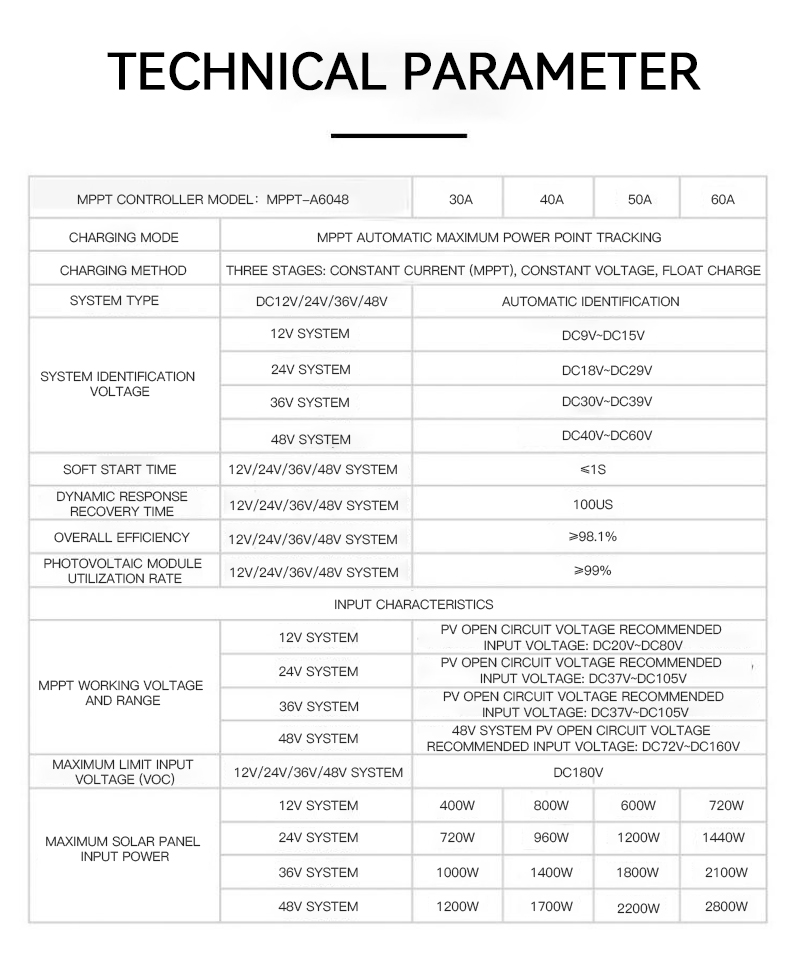

►Product Parameters
►Product Details
