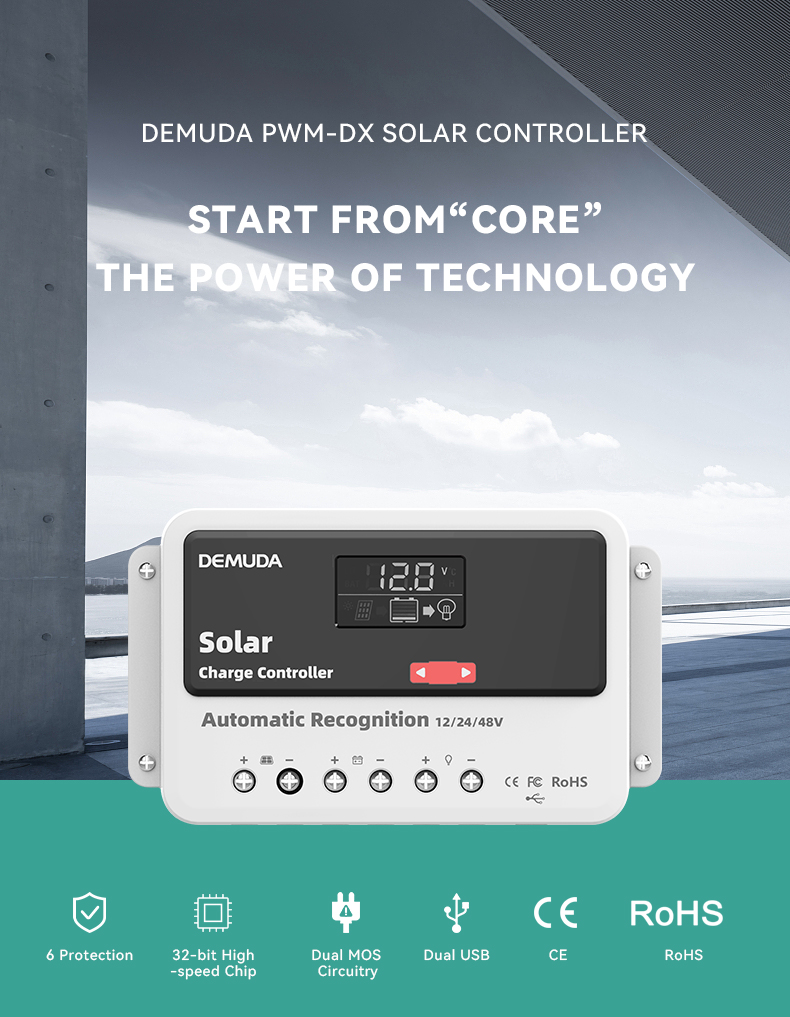

●Upgrade Chip
●3-Stage Charging

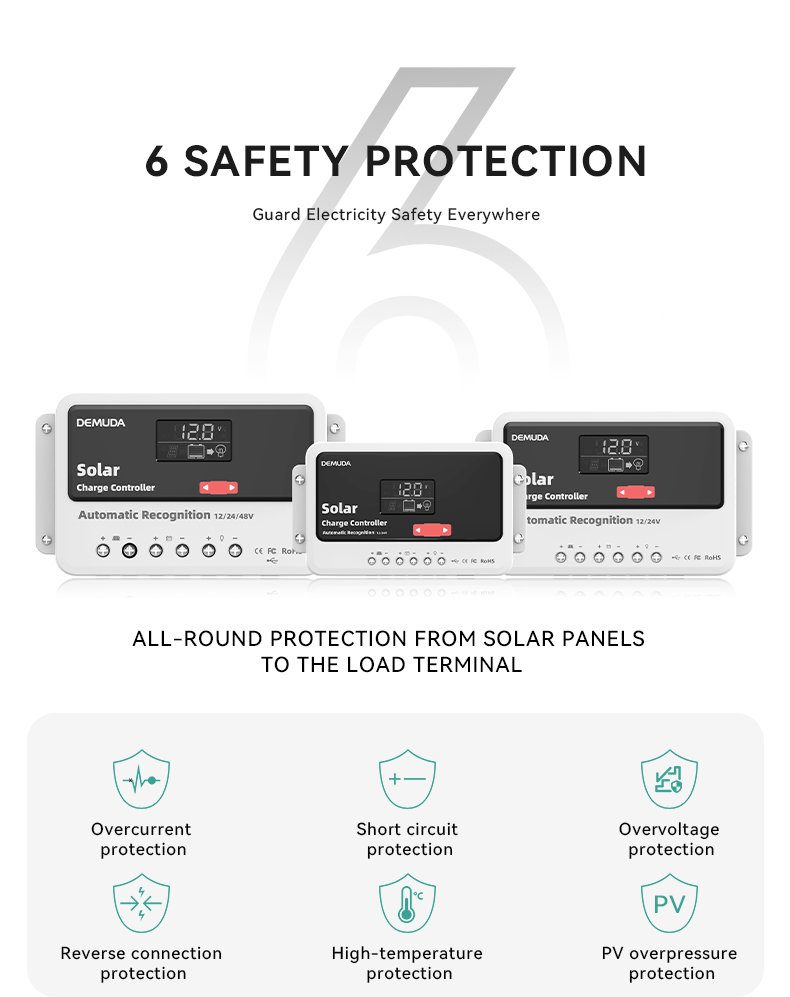

●6 Protection
●Dual MOS Circuitry
●Circuit Protection
●Support Customization
●32-bit High-speed Chip

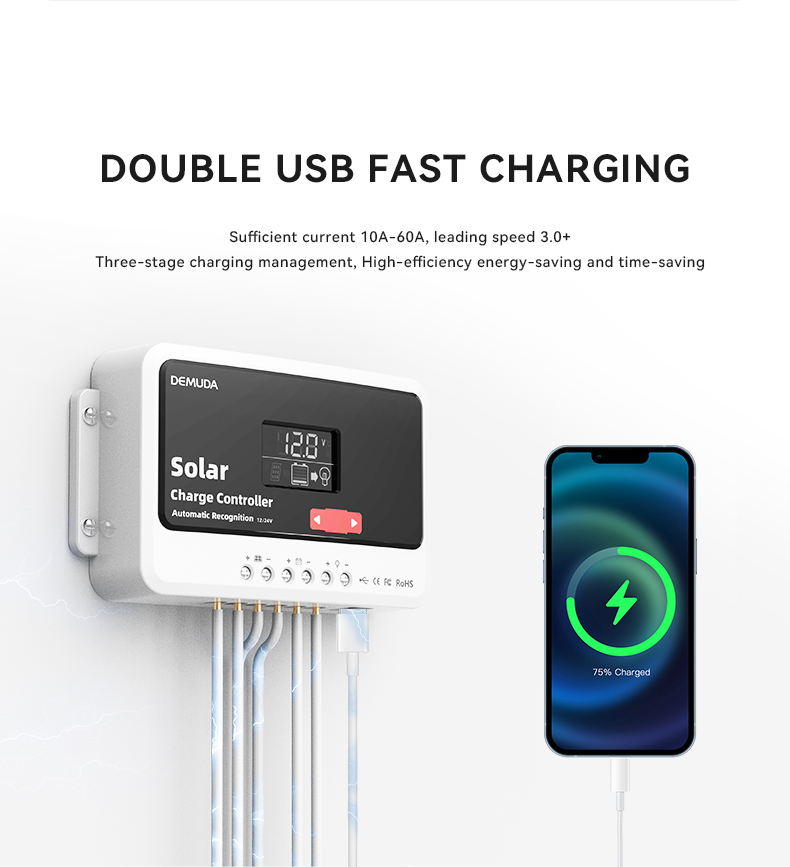

●Dual USB

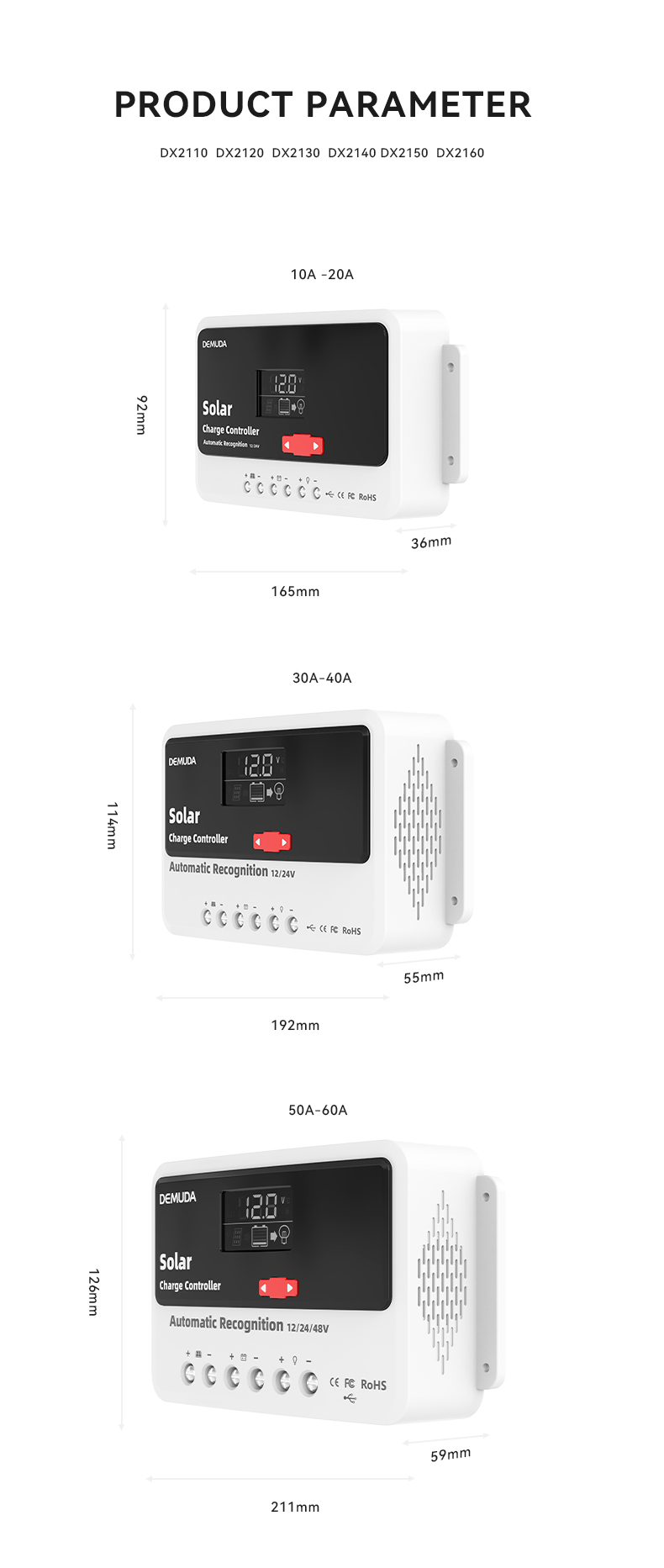

►Product Parameters
| Model | DX2110 | DX2120 | DX2130 | DX2140 | DX2150 | DX2160 |
| System Voltage | 12V/24V/Automatic adaptation | 12/V24V/48V/Automatically adaptation | ||||
| Rated Charge Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Rated Discharge Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Maximum Pv Input Voltage | 12V systems >28V protection < 25V recovery, 24V systems >53V protection < 50V recovery, | 12V system > 28V protection < 25V recovery, 24V system > 53V protection < 50V recovery, 48V system > 100V protection < 97V recover | ||||
| Charging Method | Default PWM charging, b04/b05 can be set to on-off charging | |||||
| Usb Output | 3A | |||||
| Standby Cumrent | <10mA | |||||

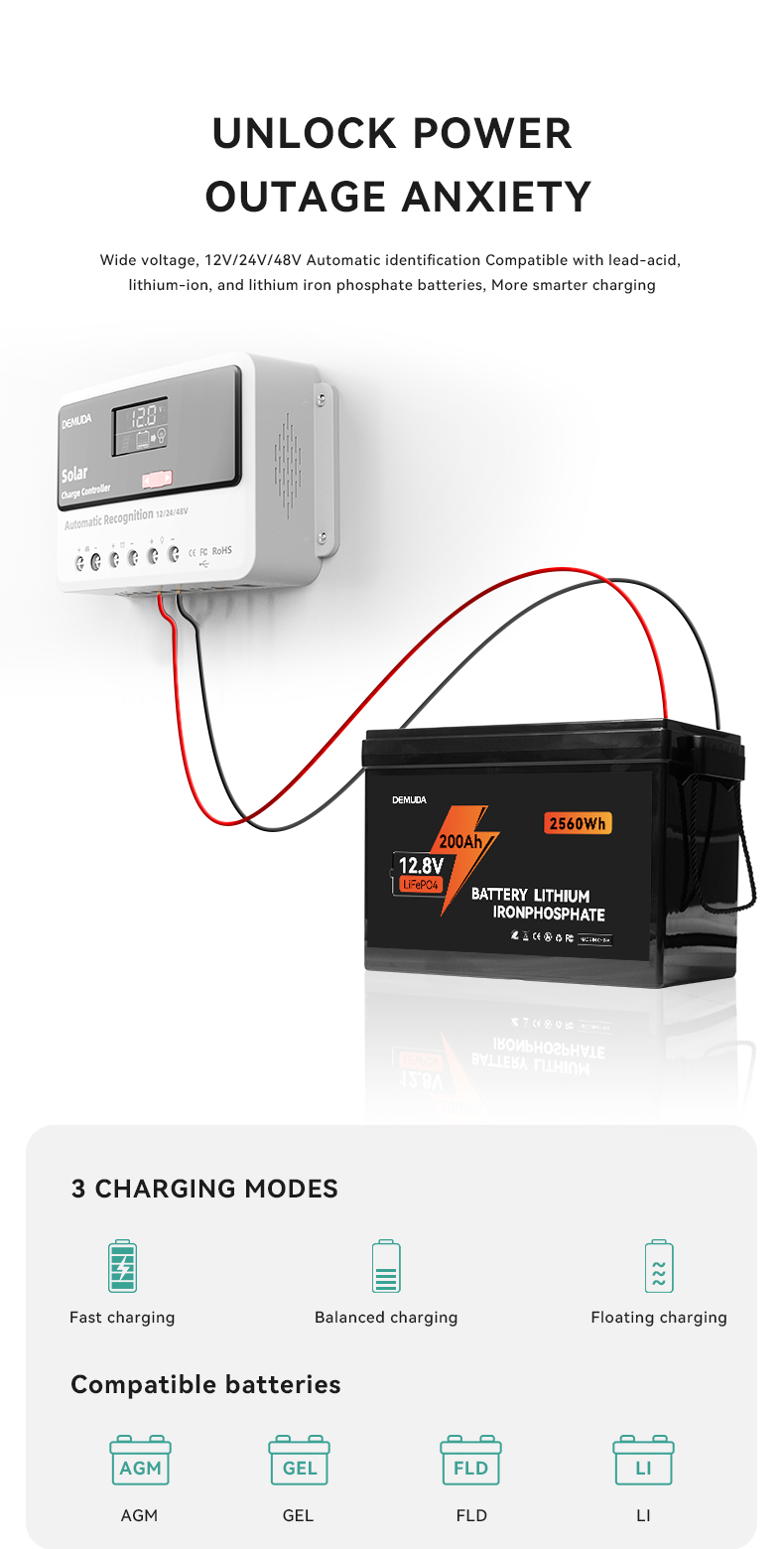

| Battery Type | b01 sealed lead-acid batteries | b02 gel-type lead-acid batteries | b03 open lead-acid batteries | b03 open lead-acid batteries | b05 lithium iron phosphate batter | |
| High Voltage Protection Hvd | 16V | |||||
| Boost Charging Voltage | 14.4V | 14.2V | 14.6V | 12.6V | 14.6V | |
| Equalize Charging Voltage | 14.6V | / | 14.8V | / | ||
| Boost Charge Retum Voltage | 13.2V | / | ||||
| Discharge Recovery Voltage | 12.6V | 10.5V | 12.6V | |||
| Discharge Cutoff Voltage | 11.1V | 9.5V | 11.1V | |||
| Enhanced Charging Time | 2H | / | ||||
| Equalize Charging Time | 2H | / | 2H | / | ||
►Product Details
