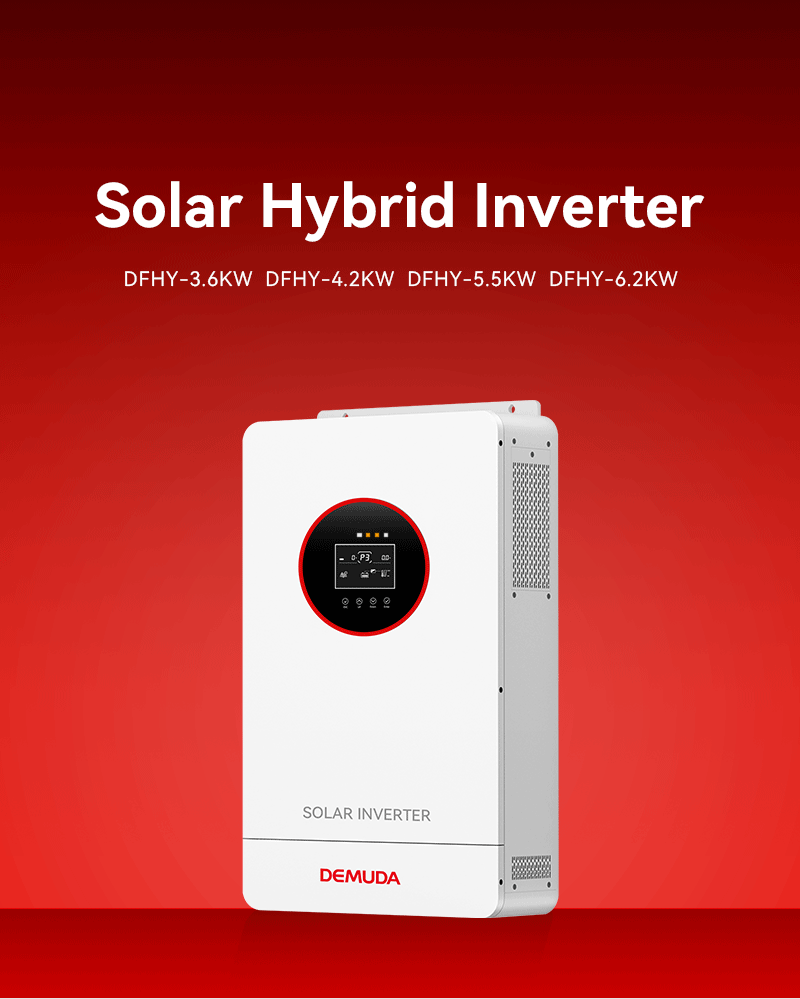

1.5KW 3.6KW 4.2KW 5.5KW 6.2KW 13.2KW EU MPPT All In One Off Grid Wifi Hybrid Solar Power Inverter

Product introduction

This is a multifunctional solar inverter, integrated with a MPPT solar charge controller, a highfrequency pure sine wave inverter and a UPS function module in one machine, which isperfect for off grid backup power and self-consumption applications. This inverter can workwith or without batteries. The WiFi / GPRS module is a plug-and-playmonitoring device to be installed on the inverter. With this device, users can monitor thestatus of the PV system from the mobile phone or from the website anytime anywhere.

Model Number：DMD-Inverter

Input Voltage：120-450VDC

Output Current：80A Max

Certificate：CE TUV Rohs FCC

Warranty：12 Moths

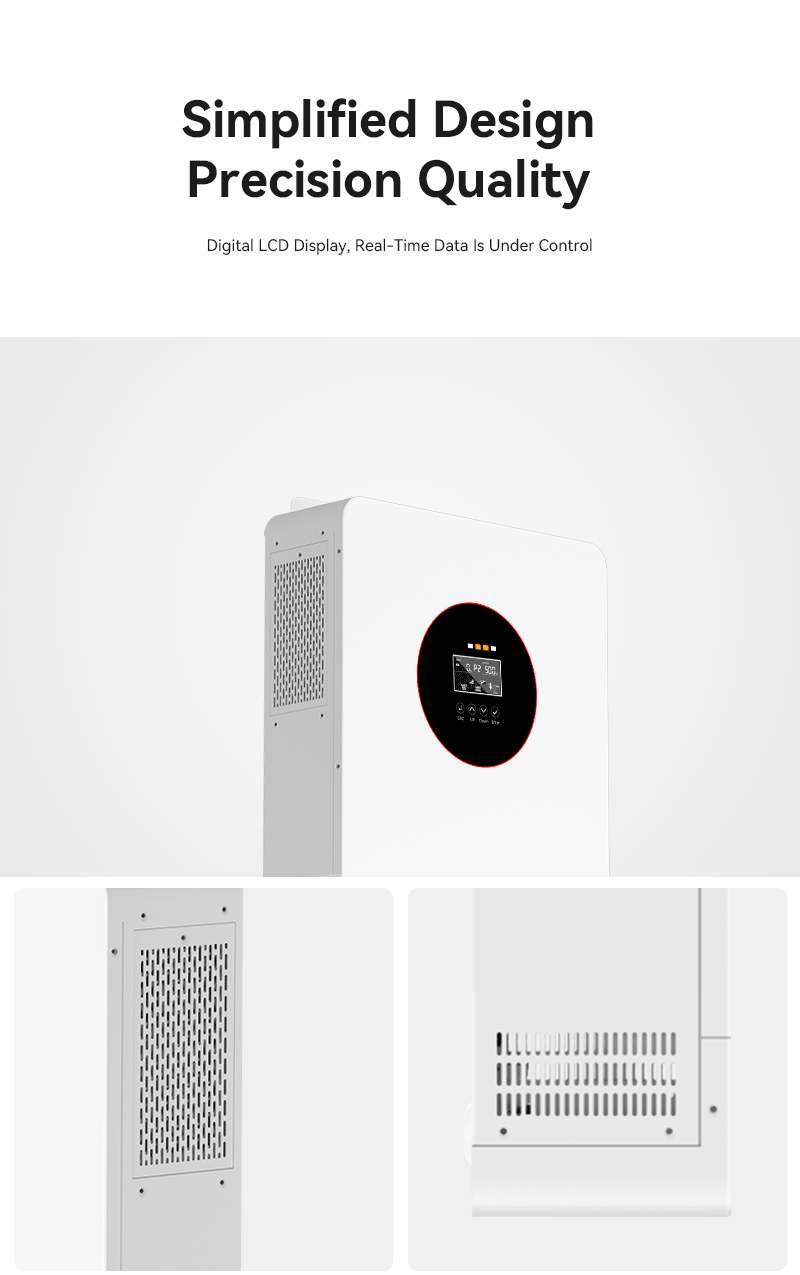

Display：LCD+LED Display

Protection：Overload

Quantity:

Inquire

Add to Basket Download

Product details

►Product Features

● Pure sine wave solar inverter(Optional on/off Grid)

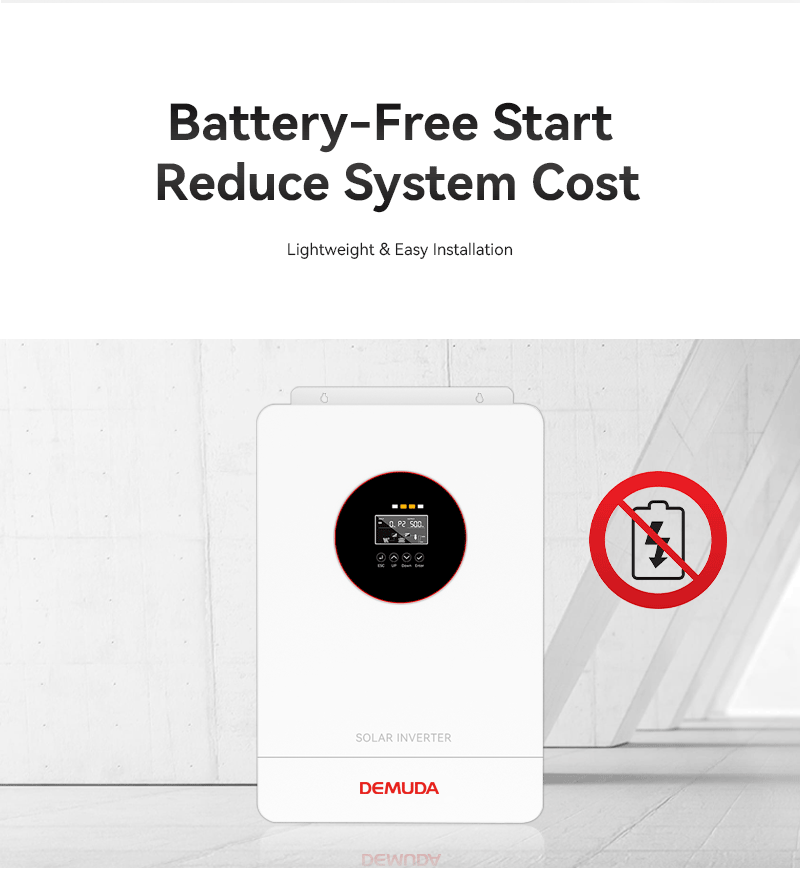

● Inverter can run without battery, One-key restorationto factory Settings

● Built-in Lithium battery automatic activation

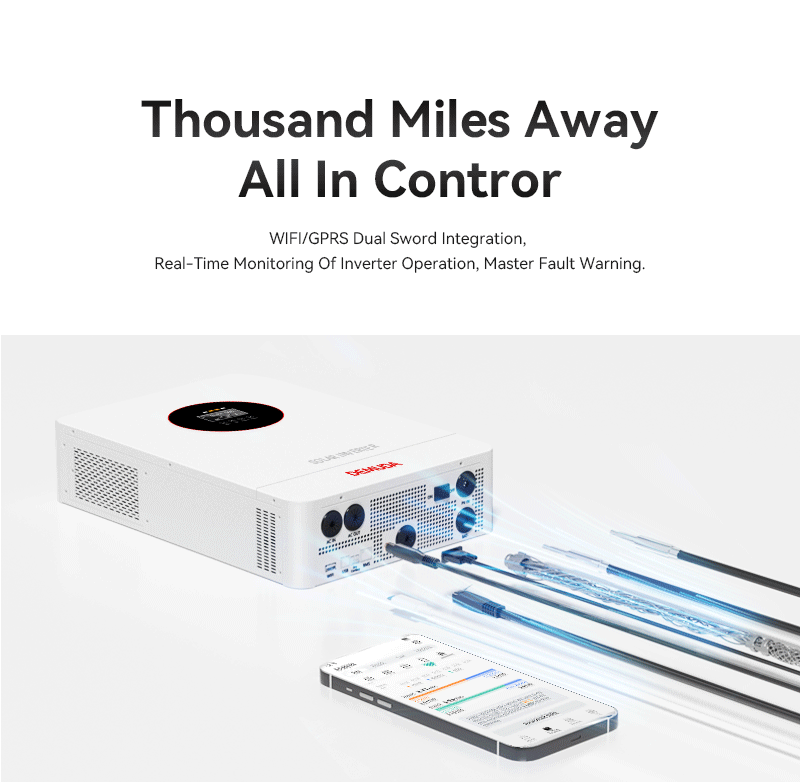

● WIFI&GPRS available for IOS and Android

● Built-in MPPT Solar charge

● High PV input voltage range

● Built-in anti-dust kit for harsh environment

● Smart battery charge design to optimize battery life

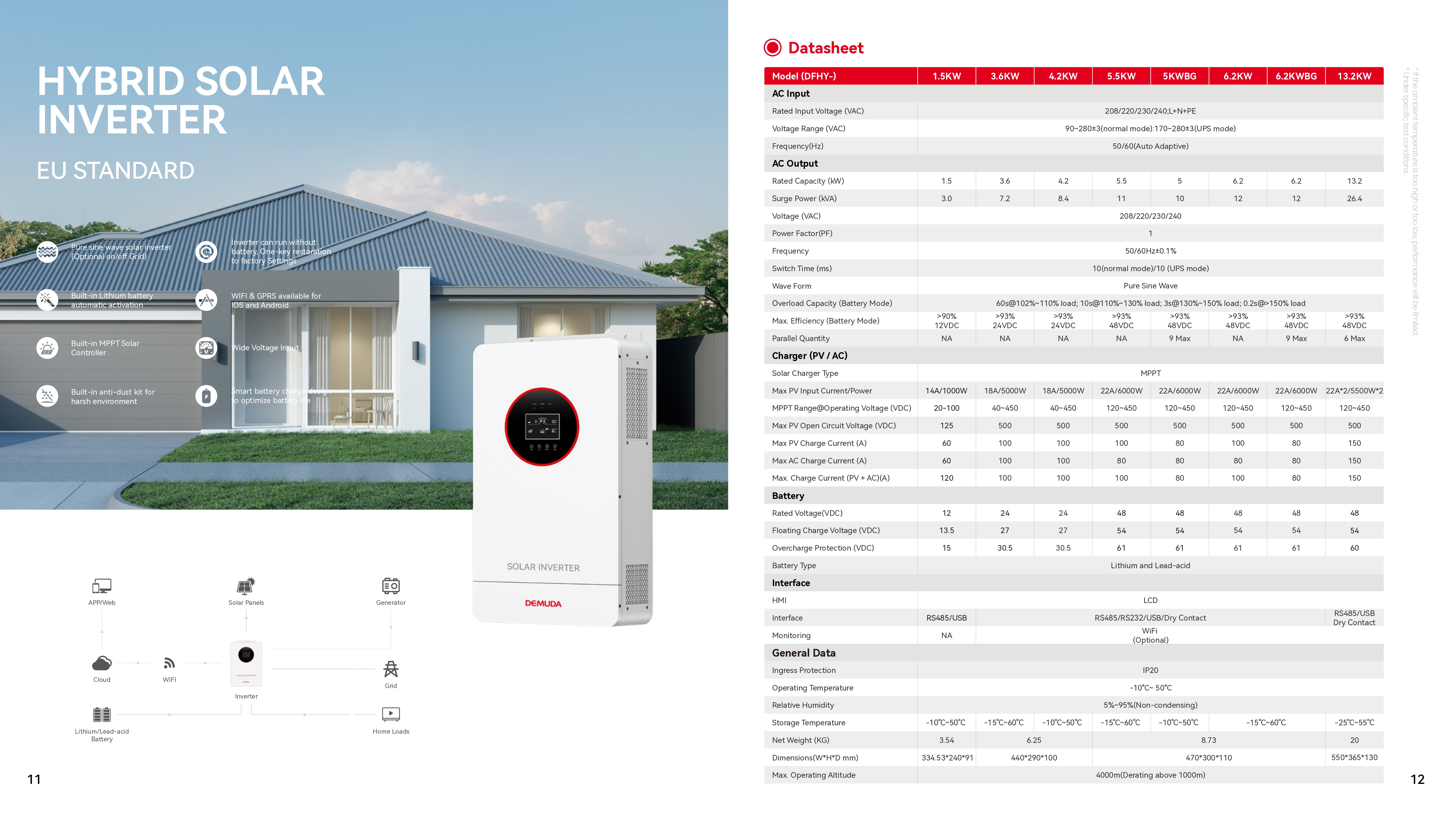

►Product Parameters

Model (DFHY-)	1.5KW	3.6KW	4.2KW	5.5KW	5KWBG	6.2KW	6.2KWBG	13.2KW
AC Input
Rated Intpat Voltage (VAC）	208/220/230/240；L+N+PE
VoltageRange (VAC)	90~280±3(narmal made):170~280±3(UPS mode)
Freeueney(Hz)	50/60(Auto Adaptive)
AC Output
Rated Capacity (kw)	1.5	36	4.2	5.5	5	6.2	6.2	132
Surge Power (kVA)	3	7.2	8.4	11	10	12	12	26.4
Voltage (VAC)	208/220/230/240
Power Factor(PF)	1
Frequency	50/60Hz±0.1%
Switch Time (ms)	10(normal mode)/10 (UPS mode)
Wave Form	Pure Sine Ware
Overload Capacity (Battery Mode)	60s@102%~110% load; 10s@110%~130% load:3s@130%~150% load; 0.2s@>150% load
Max. Efficiency (Battery Mode)	90%@ 12VDC	92.7%@ 24VDC	92.7%@ 24VDC	93%@ 48VDC	93%@ 48VDC	93%@ 48VDC	93%@ 48VDC	>93%@ 48VDC

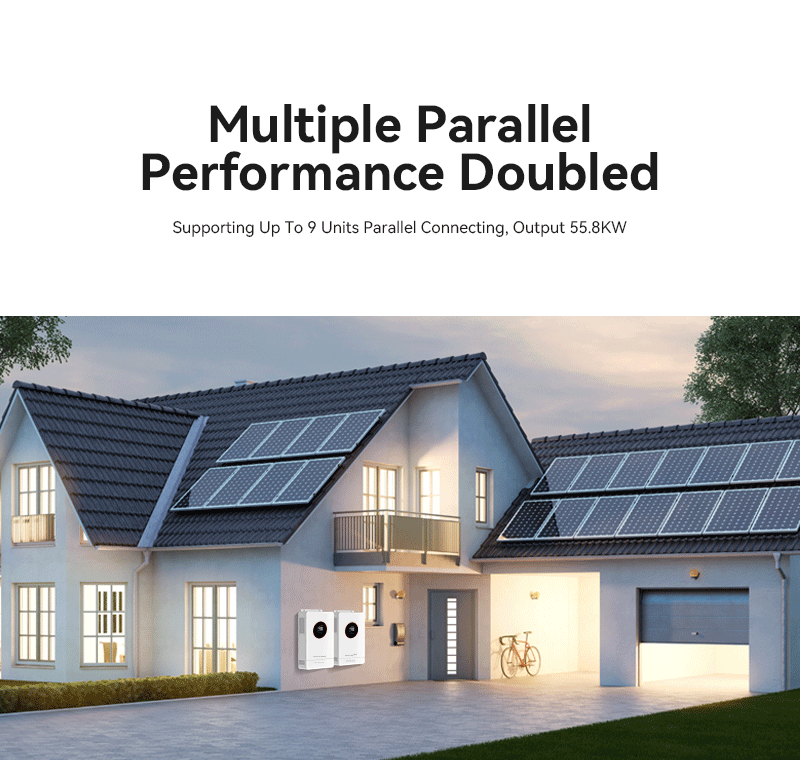

Parallel Quantity	NA	NA	NA	NA	9Max	NA	9Max	6Max
Charger (PV/AC)
Solar Charger Type	MPPT
Max PV input Current/Power	14A/1000W	18A/5000W	18A/5000W	22A/6000W	22A/6000W	22A/6000W	22A/6000W	22A2/5500W2
MPPT Range@Operating Voltage (VDC)	20-100	40-450	40-450	120-450	120-450	120-450	120-450	120-450
Max PV Open Circuit Voltage (VDC)	125	500	500	500	500	500	500	500
Max PV Charge Currant (A)	60	100	100	100	80	100	60	150
Max AC Charge Currant (A)	60	100	100	80	80	80	80	150
Max Charge Curmtent (PV+AC)(A)	120	100	100	100	80	100	80	150
Battery
Rated voltage(VDC)	12	24	24	48	48	48	48	48
Floating Charge Voltage (VDC)	13.5	27	27	54	54	54	54	54
Overcharge Protection (VDC)	15	30.5	30.5	61	61	61	61	60
Battery Type	Lithium and Lead-acid
Interface
HMI	LCD
Interface	RS485/USB	RS485/RS232/USB/Dry Contact						RS485/USB/Dry Contact
Monitoring	NA	WiFi(Optional)
General Data
Ingress Protection	IP20
Opeiating Temperature	-10℃-50℃
Relative Humisity	5%~95%(Non-condensing)
Storage Tereperature	-10℃-50℃	-15℃-60℃	-10'℃-50℃	-15℃-60℃	-10℃-50℃	-15℃-60℃		-25℃-55℃
Net Weight (KG)	3.54	6.25		8.73				20

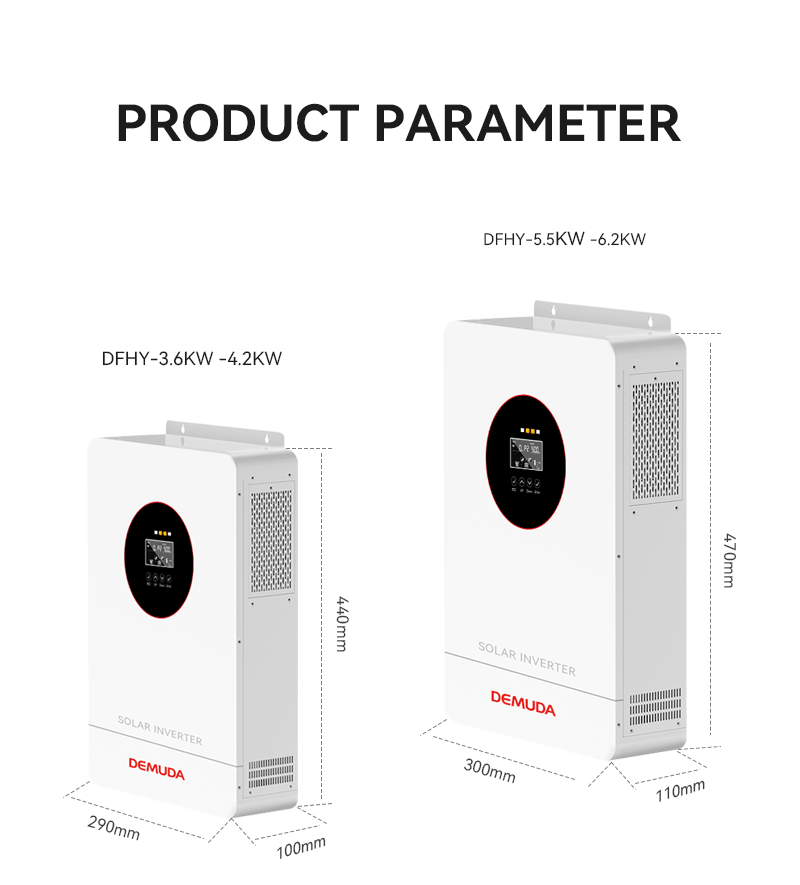

Dimensions(WHD mm)	334.5324091	440290100		470300110				550365130
Max. Operating Altitude	4000m(Derating above 1000m)

►Product Details
