12.8V 132Ah-300Ah LiFePO4 Battery

Product introduction

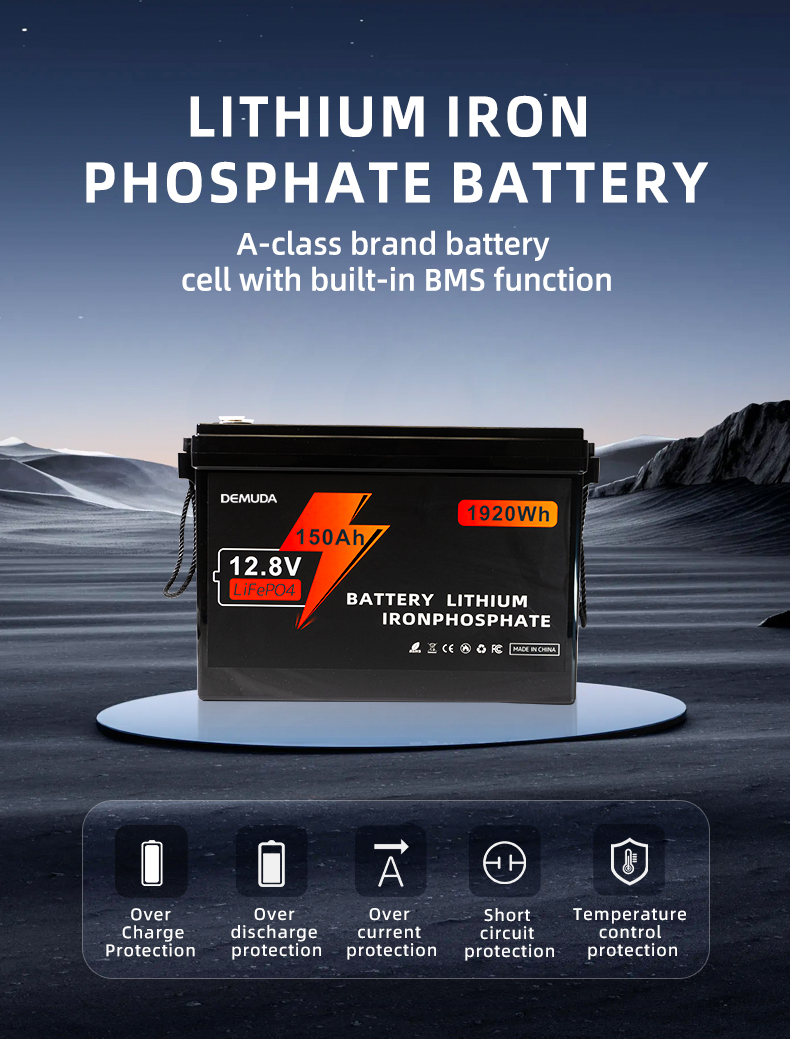

This is a lithium iron phosphate (LiFePO4) battery with a nominal voltage of 12.8V and a capacity of 132Ah - 300Ah. It has a built-in BMS for precise monitoring and protection. It uses aviation-type batteries with a cycle life of over 6,000 times. It is environmentally friendly, lightweight, and highly stable. It has an IP65 protection level and supports Bluetooth communication.

Quantity:

Inquire

Add to Basket Download

Product details

►Product Features

●Internal BMS

●Environmental Protection

●A+ Prismatic Cell

●Lighter Weight

●6000+ Cycle Times

●High Stability

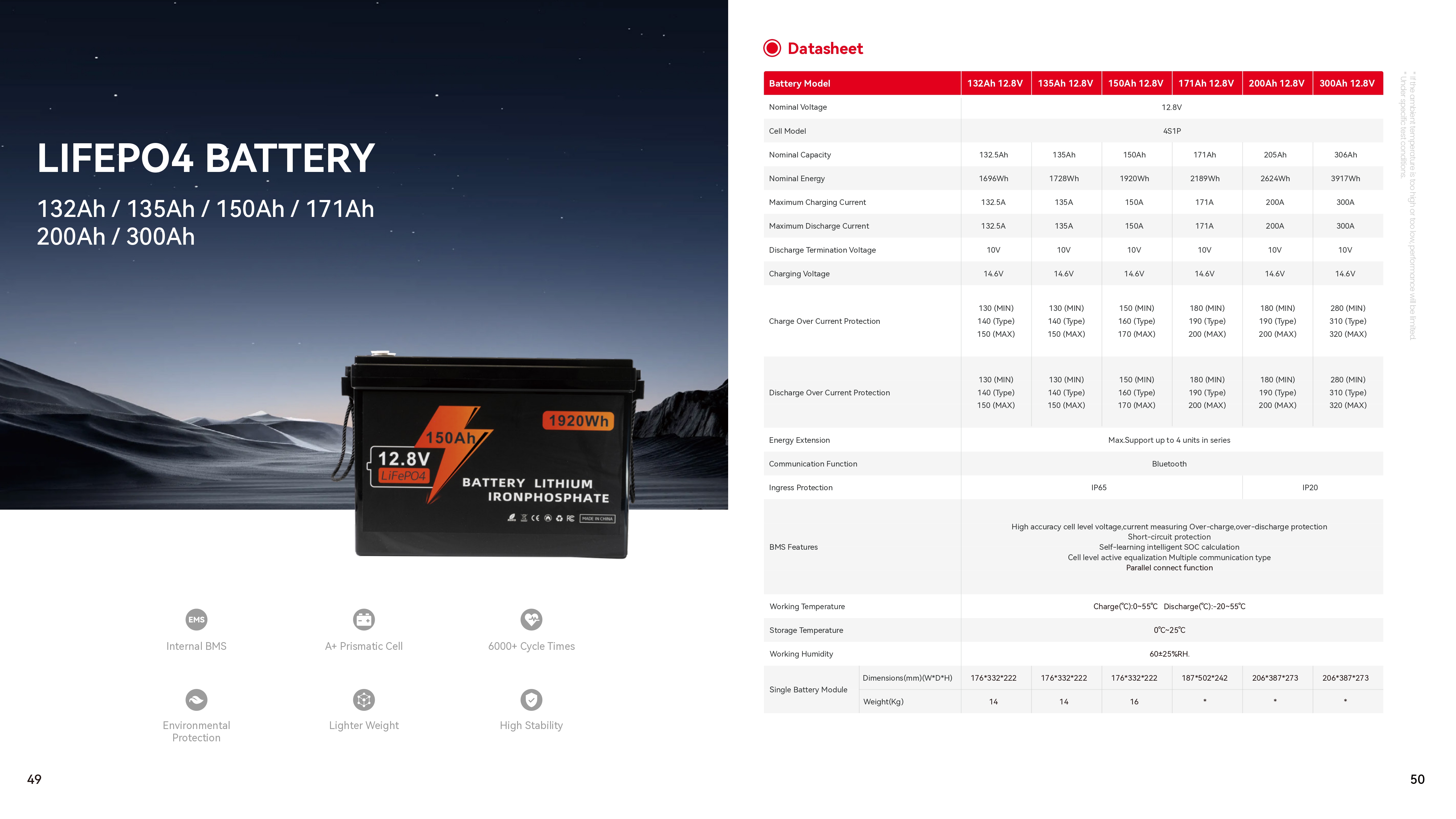

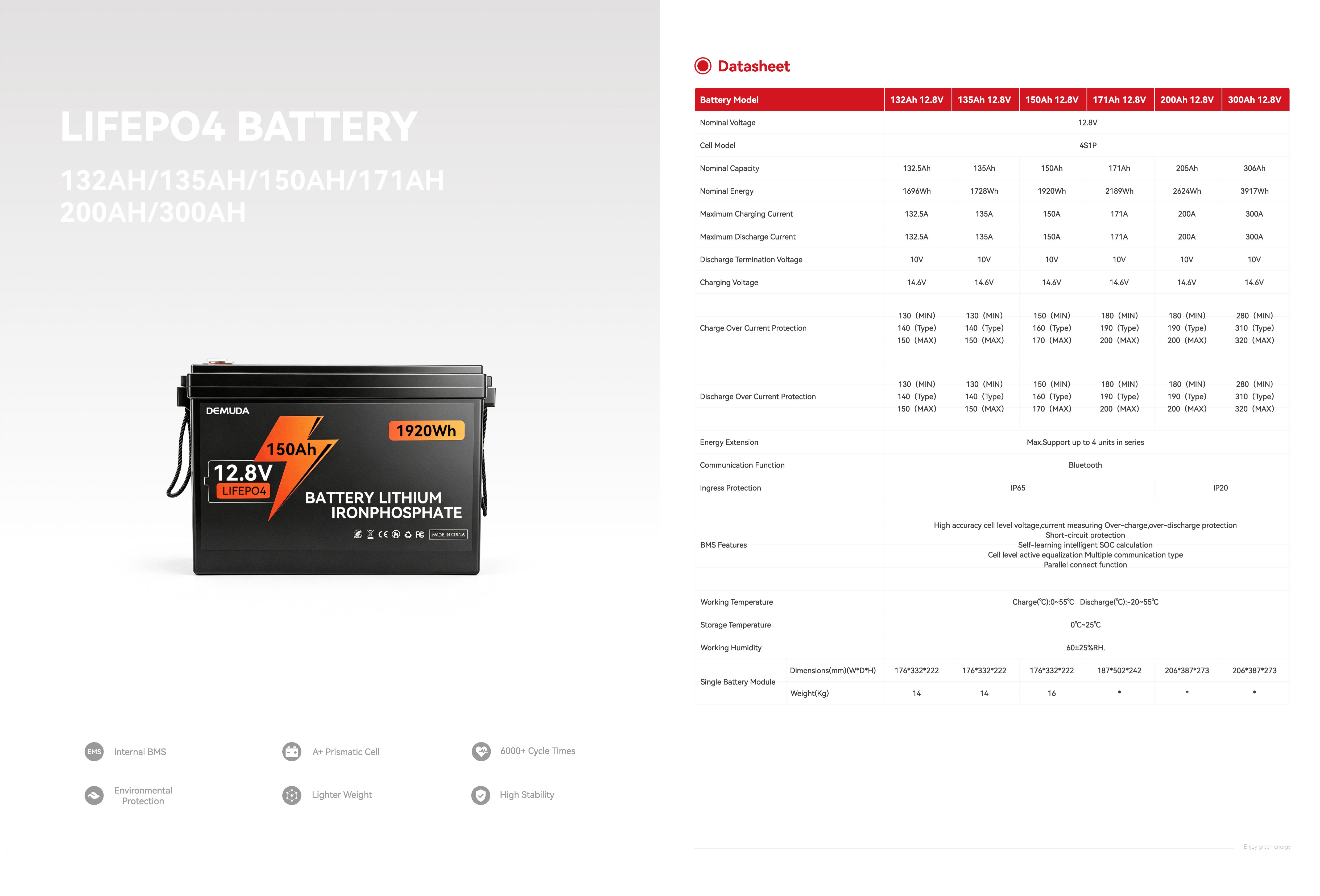

►Product Parameters

Battery Model		132A 12.8V	135A 12.8V	150A 12.8V	171A 12.8V	200A 12.8V	300A 12.8V
Nominal Voltage		12.8V	12.8V	12.8V	12.8V	12.8V	12.8V
Cell Model		4S1P	4S1P	4S1P	4SIP	4S1P	4S1P
Nominal Capacty		132.5Ah	135Ah	150Ah	171Ah	205Ah	306Ah
Nominal Energy		1696Wh	1728Wh	1920Wh	2189Wh	2624Wh	3917Wh
Madimum Charging Current		132.5A	135A	150A	171A	200A	300A
Marimum Discharge Cumrent		132.5A	135A	150A	171A	200A	300A
Discharge Termination Voltage		10V	10V	10V	10V	10V	10V
Charging Voltage		14.6V	14.6V	14.6V	14.6V	14.6V	14.6V
Charge OIver Current Protection		130 (MIN) 140(Type) 150 (MAX)	130 (MIN) 140 (Type) 150 (MAX)	150 (MIN) 160 (Type) 170 (MAX)	180 (MN) 190(Type) 200 (MAX)	180 (MN) 190 CType) 200 (MAX)	280 (MN) 310 (Type) 320 (MAX)
Diascharge Over Current Protection		130 (MN) 140 (Type) 150 (MAX)	130 (MIN) 140 (Type) 150 (MAX)	150 (MIN) 160 (Type) 170 (MAX)	180 (MIN) 190 (Type) 200 (MAX)	180(MN) 190 (Type) 200 (MAX)	280 (MN) 310 (Type) 320 (MAX)

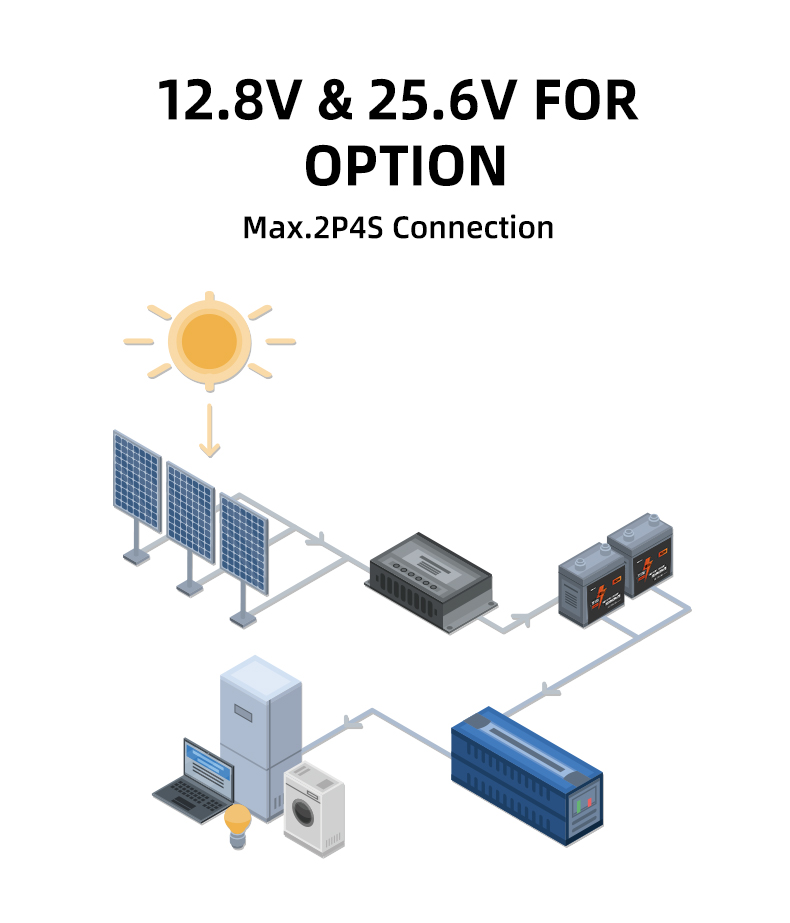

Energy Ectersion		Max Support up to 4 units in series
Communication Function		Bluetooth
Ingress Protection		IP65				IP20
BMS Features		High accuracy cell level voltage,current measuring Over-charge,over-discharge protection Short-circuit protection Self-learning intelligent SOC calculation Cell level active equalization Multiple communication type Parallel connect function
Working Temperature Storage Temperature		Charge(℃):0~55℃ Discharge(℃):-20~55℃
Storage Temperature		0℃~25℃
Working Humidity		60±25%RH.
Single Battery Module	Dimensions(mm)(WDH)	176332222	176332222	176332222	187502242	206387273	2067387*273
Single Battery Module	Weight(Kg)	14	14	16	*	*	*

►Product Details
