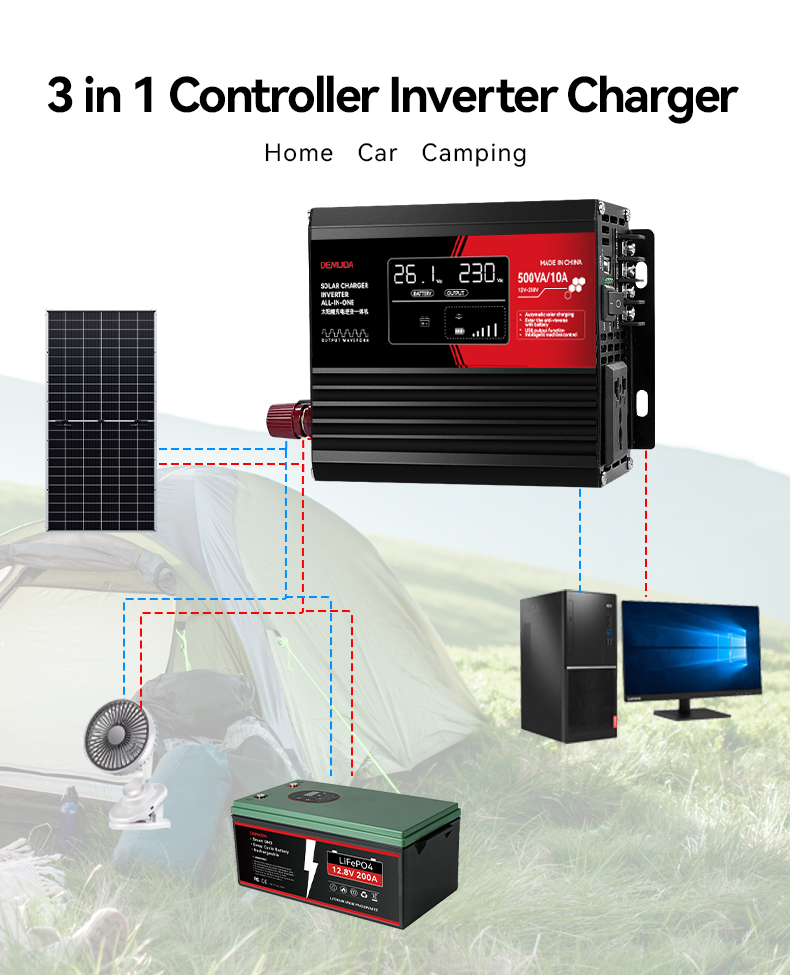

●3 in 1 Controller Inverter Charger
●Smart Chip Protection
●Ultra Silent Thermo Activated Fan

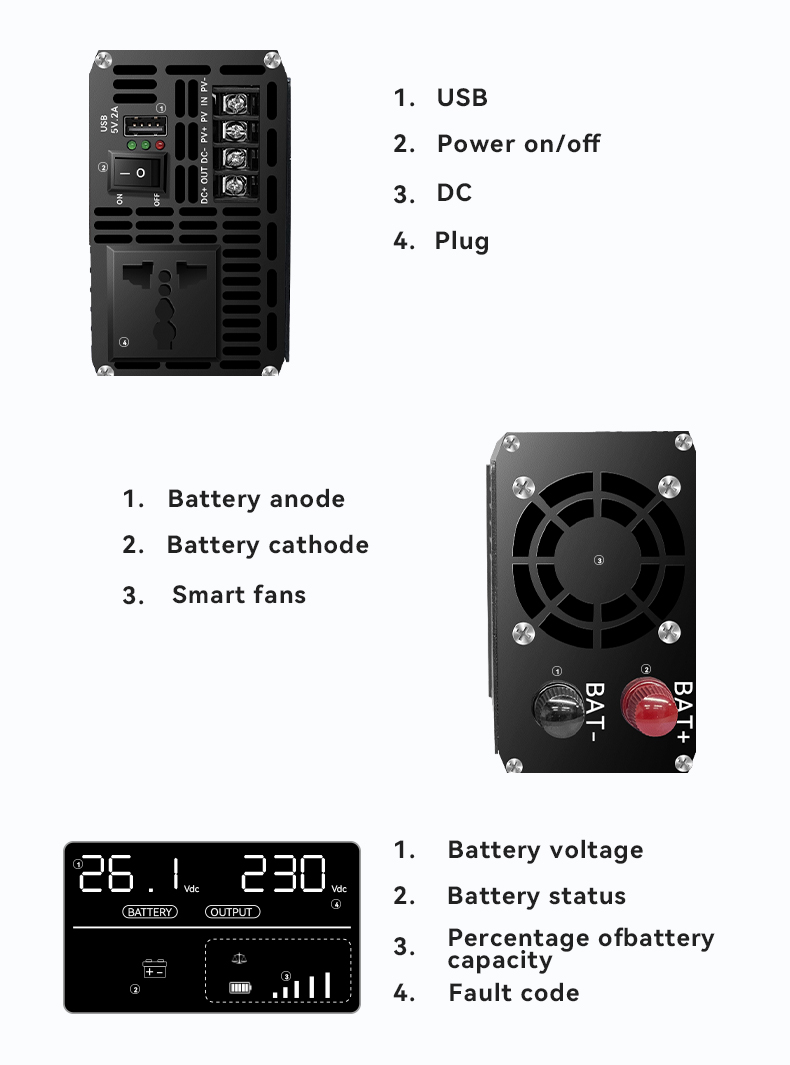

●LCD Display and USB Ports

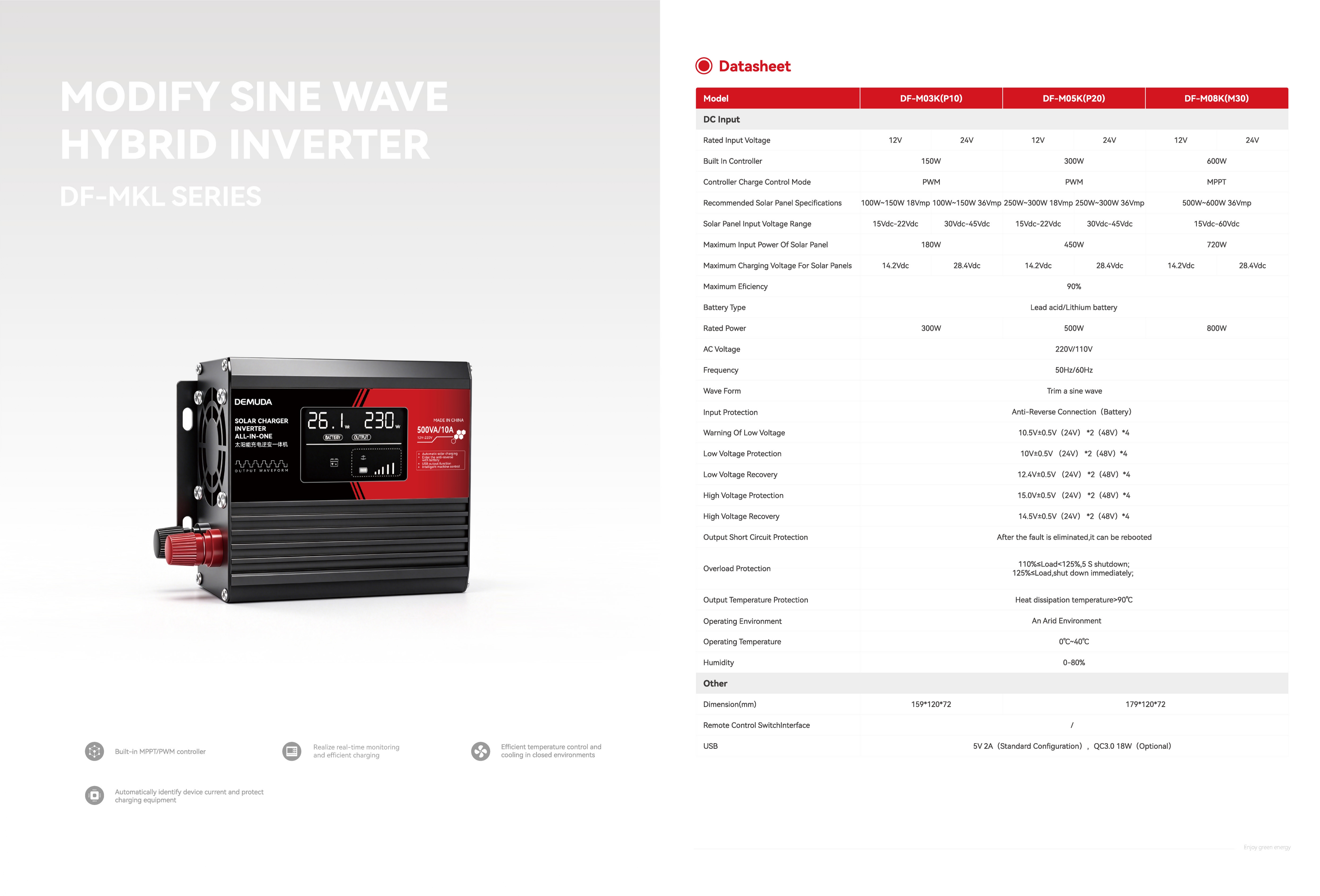

►Product Parameters
| Model | DF-M03K(P10) | DF-M05K(P20) | DF-M08K(P30) | |||
| DC Input | ||||||
| Rated Input Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Buit In Controller | 150W | 300W | 600W | |||
| Controller Charge Contral Mode | PWM | PWM | MPPT | |||
| Recommended Solar Panel Specifications | 100W~150W 18Vmp 100W~150W 36Vmp 250W~300W 18Vmp 250W~300W 36Vmp | 500W~600W 36Vmp | ||||
| Solar Panel Input Voltage Range | 15Vdc-22Vdc | 30Vdc-45vdc | 15Vdc-22vdc | 30vdc-45vdc | 15Vdc-60Vdc | |
| Masimum Input Power Of Solar Panel | 180W | 450W | 720W | |||
| Masimum Charging Voltage For Solar Panels | 14.2Vdc | 28.4Vdc | 14.2Vdc | 28.4Vdce | 14.2Vdc | 28.4Vdc |
| Maximum efficiency | 90% | |||||
| Battery Type | Lead acid/Lithium battery | |||||
| Rated Power | 300W | 500W | 800W | |||
| AC Voltage | 220V/110V | |||||
| Fre quency | 50Hz/60Hz | |||||
| Wirve Fomm | Trim a sire wave | |||||
| Input Protection | Anti-Reverse Connection（Battery） | |||||
| Waming Of Low Voltage | 10.5V±0.5V（24V） *2（48V）*4 | |||||
| Low Valtage Protection | 10V±0.5V （24V） *2（48V）*4 | |||||
| Low Valtage Recovery | 12.4V±0.5V （24V） *2（48V）*4 | |||||
| High Voltage Protection | 15.0V±0.5V （24V） *2（48V）*4 | |||||
| High Voltage Recovery | 14.5V±0.5V（24V） *2（48V）*4 | |||||
| Output Shart Crauilt Protection | After the fault is eliminated,it can be rebooted | |||||
| Overioad Protection | 110%≤Load<125%,5 S shutdown; 125%≤Load,shut down immediately; | |||||
| Output Temperature Protection | Heat dissipation temperature>90℃ | |||||
| Operating Environment | An Arid Environment | |||||
| Operating Temperature | 0℃~40℃ | |||||
| Humidity | 0-80% | |||||
| Other | ||||||
| Dimension(mm) | 159*120*72 | 179*120*72 | ||||
| Remote Control Switchinterface | Standard Configuration | |||||
| USB | 5V 2A（Standard Configuration），QC3.0 18W（Optional） | |||||

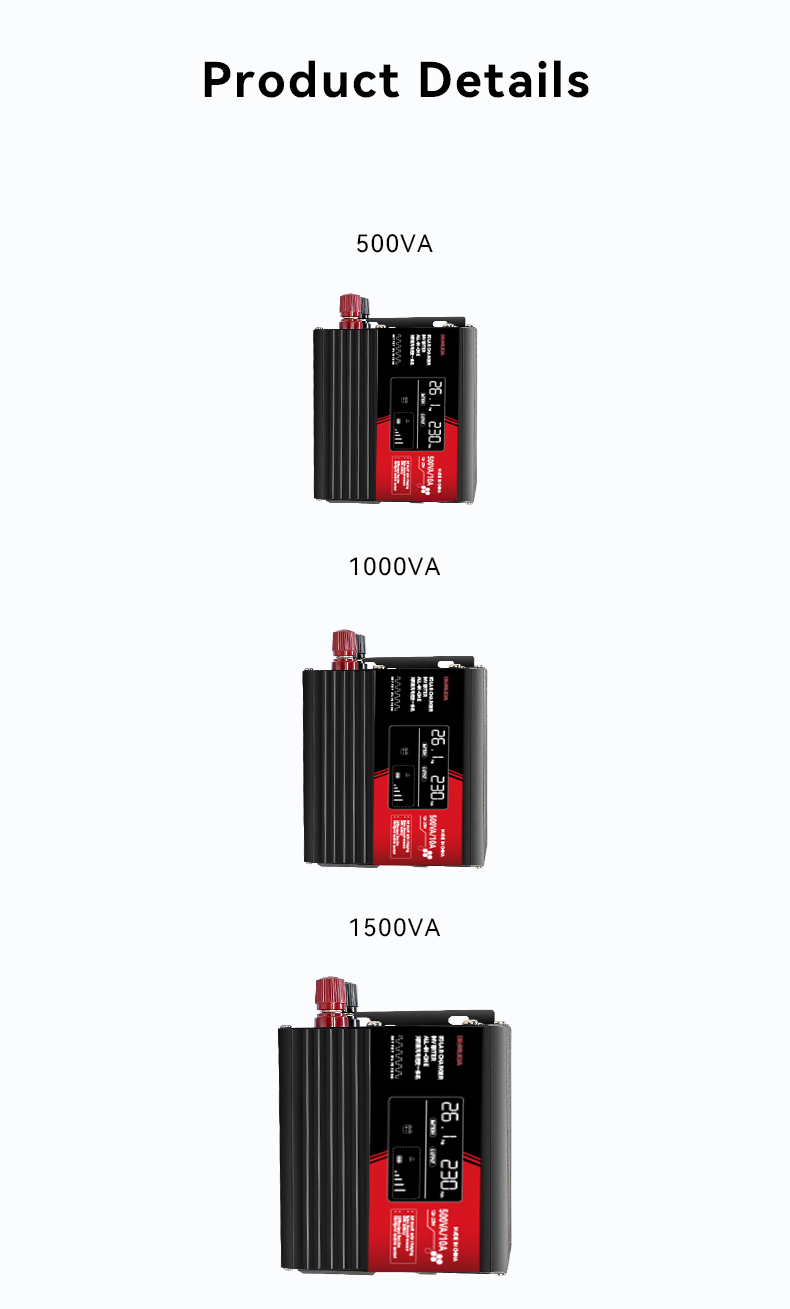

►Product Details
