●48V low voltage battery,built-in transformer for safety isolation
●Direct support for diesel generator power without external converter
●Support to set up 6 time periods of charge/discharge
●Supports AC coupling to improve solar system efficiency
●Max charge and discharge current 240A
●Up to 10 units parallel during on/off-grid operation
●Supports multiple battery parallel

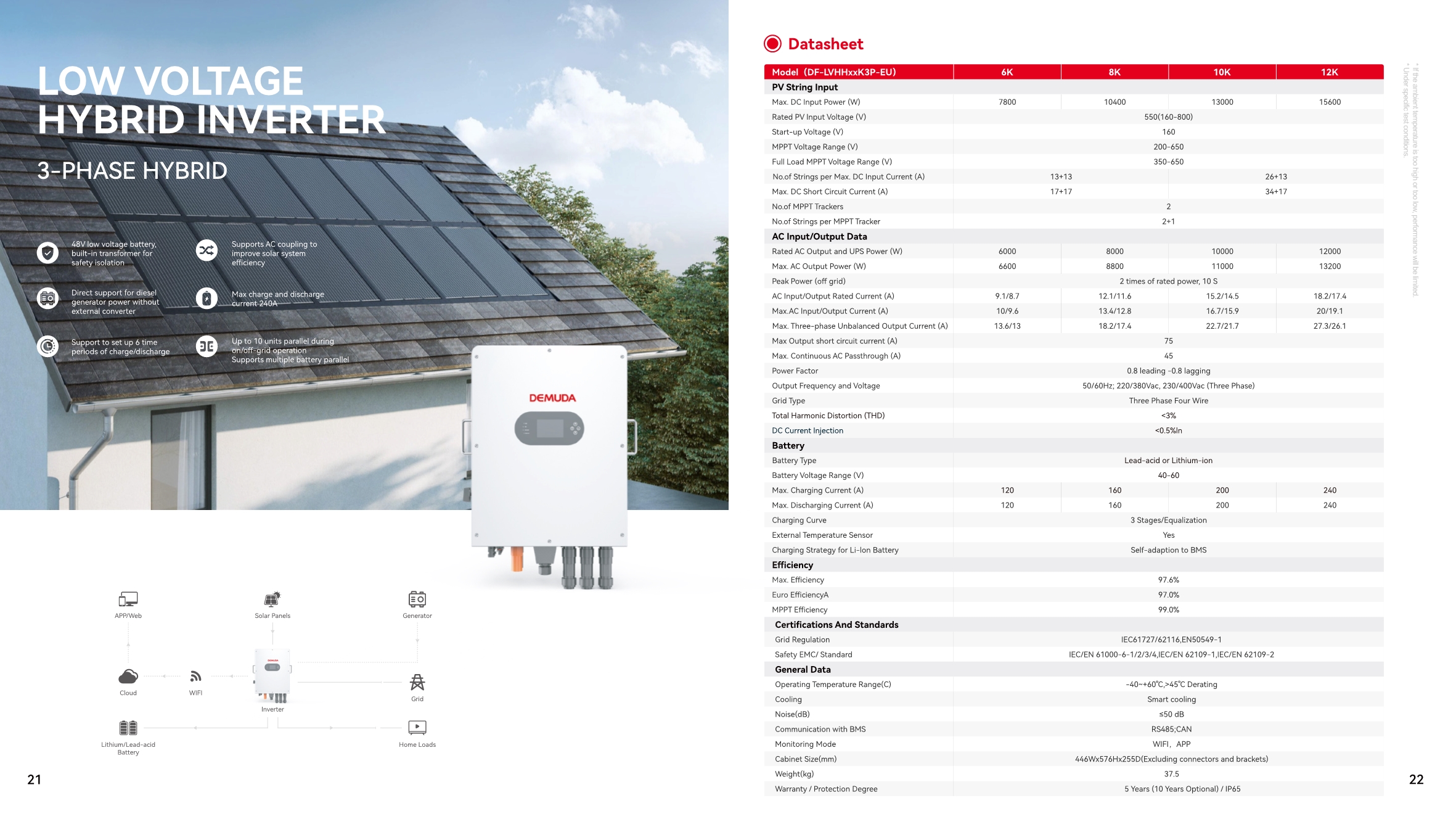

►Product Parameters
| Model（DF-LVHHxxK3P-EU） | 6K | 8K | 10K | 12K |
| PV String Input | ||||
| Max.DC Input Power (W) | 7800 | 10400 | 13000 | 15600 |
| Rated PV Input Voltage (V) | 550(160-800) | |||
| Start-up vohtage (V) | 160 | |||
| MPPT Voltage Range (V) | 200-650 | |||
| Full Load MPPT valtage Range (V) | 350-650 | |||
| No.of Strings per Max. DC Input Cumrent (A) | 13+13 | 26+13 | ||
| Max.DC Short Crcult Curment (A) | 17+17 | 34+17 | ||
| No of MPPT Tackers | 2 | |||
| No.of Strings per MPPT Tracker | 2+1 | |||
| AC Input/Output Data | ||||
| Rated AC Output and UPS Power (W) | 6000 | 8000 | 10000 | 12000 |
| Max.AC Output Power(W) | 6600 | 8800 | 11000 | 13200 |
| Pesk Power (off grid) | 2 times of rated power, 10 S | |||
| AC Input/Dutput Rated Curment(A) | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max AC Input/Output Curmrent(A) | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max.Three-phase Unbalanced Output Curment (A) | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 |
| Max Output short droult cumrent (A) | 75 | |||
| Max.Continuous AC Passthrough (A) | 45 | |||
| Power Factor | 0.8 leading-0.8 lagging | |||
| Output Frequency and Voltage | 50/60Hz; 220/380Vac, 230/400Vac (Three Phase) | |||
| God Type | Three Phase Four Wire | |||
| Total Harmonic Distortion (THD) | <3% | |||
| DC Cumrent Injection | <0.5% | |||
| Battery | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Vottage Range (V) | 40-60 | |||
| Max.Charging CummenR(A) | 120 | 160 | 200 | 240 |
| Max.Discharging Cumme㎡t(A) | 120 | 160 | 200 | 240 |
| Charging Curve | 3 Stages/Equalization | |||
| External Temperature Sensor | Yes | |||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| Euro EffciencyA | 97.0% | |||
| MPPT Eficiency | 99.0% | |||
| Certifications And Standards | ||||
| Grid Regulation | IEC61727/62116,EN50549-1 | |||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | |||
| General Data | ||||
| Operating Temperature Range(C) | -40~+60℃,>45℃ Derating | |||
| Cooling | Smart cooling | |||
| Noise(d8) | ≤50 dB | |||
| Communication with BMS | RS485;CAN | |||
| Monitoring Mode | WIFI，APP | |||
| Cabinet Siae(mm) | 446Wx576Hx255D(Excluding connectors and brackets) | |||
| Weigh((kg) | 37.5 | |||
| Warranty/Protection Degree | 5 Years (10 Years Optional) / IP65 | |||
