►Product Features
●Can Be Connected To Large Solar Systems
●Warranty 5 Years
●The Power Conversion Rate is 99%
●The Service lfe ls UP To 25 Years
●Waterproof grade:Ip65, IP67 waterproof could be ordered
●Output voltage mode 120/230V Auto switch
►Product Parameters
| Model | LDW-800 | LDW-1000 |
| Input Parameters (DC) | ||
| Recommended Solar Panel Ieput Power | 275-530Wx 2 | 275-530Wx2 |
| Number Of De Input Connections | MC4x2 | |
| Maximum Input Voltage | 60V | |
| De Voltage Input Range | 16-60V | |
| Starting Volage | 22V | |
| Maximum Power Point Tracking Voltage Range | 22-55V | |
| Mppt Tracking Accuracy | >99.5% | |
| Maximum Input Dc Current | 14A*2 | 16A*2 |
| Output Parameters (AC) | ||
| Maximum Output Power | 800W | 1000W |
| Rated Output Voltage | 230V | |
| Ac Voltage Range | 190-270V | |
| Maximum Output Current | 3.47A | 4.34A |
| Rated Output Frequency | 50Hz/60Hz | |
| Output Frequency Range | 47.5-50.5Hz/58.9-61.9Hz | |
| Harmonic Distortion | <5% | |
| Output Power Factor | >0.99 | |
| Maximum Conversion Efficiency | 96% | |
| Protection Level | Class I | |
| Protective Function | 8 Protections | |
| Operating Temperature Range | -40℃to+65℃ | |
| Indicator Light | Working status light+WIFI signal light | |
| Communication Mode | Wi-F1/2.4G | |
| Cooling Method | Natural cooling (no fan) | |
| Working Environment | Indoor/Outdoor | |
| Weights | 2.52kg | |
| Sizes(L*W*H) | 227mm*195.5mm*42mm | |

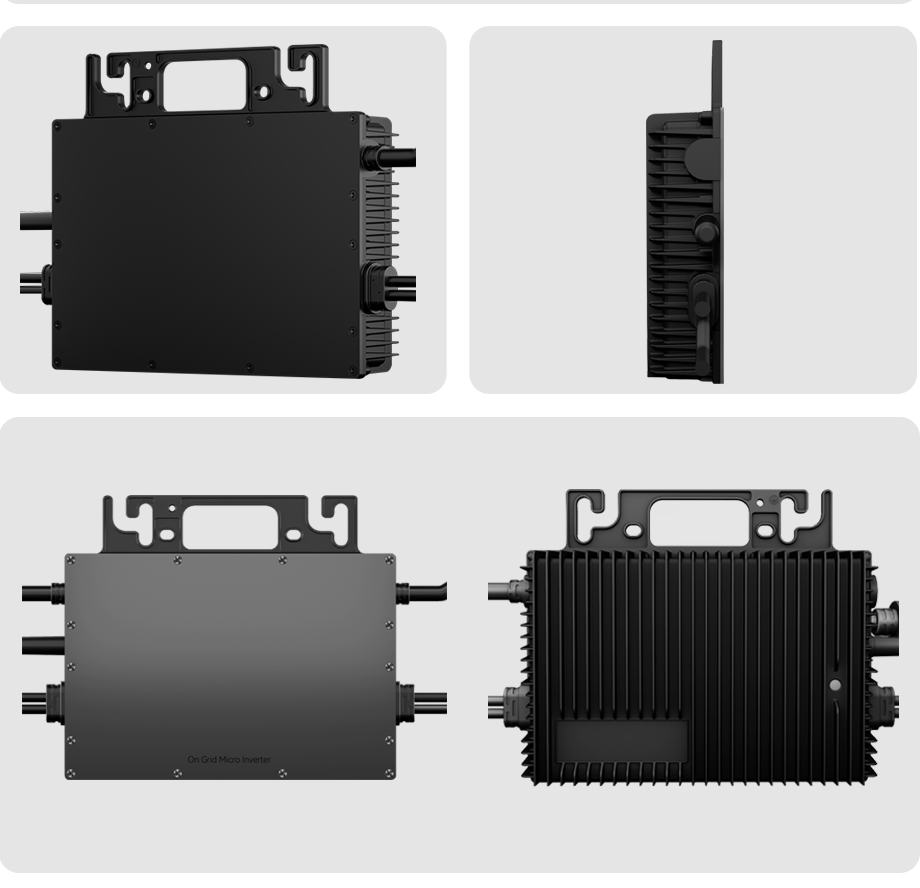

►Product Details
