Product introduction

DF US series inverters present a brand-new appearance design and hardware topology. With more advanced digital control technology, the overall performance of the inverters is updated and iterated on the basis of the previous generation of products. The heat dissipation design of this series of inverters is extremely excellent, and it has a more complete software and hardware protection mechanism, which makes its service life longer and its reliability greatly improved.

Allow quantity:1-6

Nominal input voltage:120Vac+5%

Frequency:50Hz/60Hz (Auto detect)

Nominal Output Power :3.6kW/6.5kW/12kW

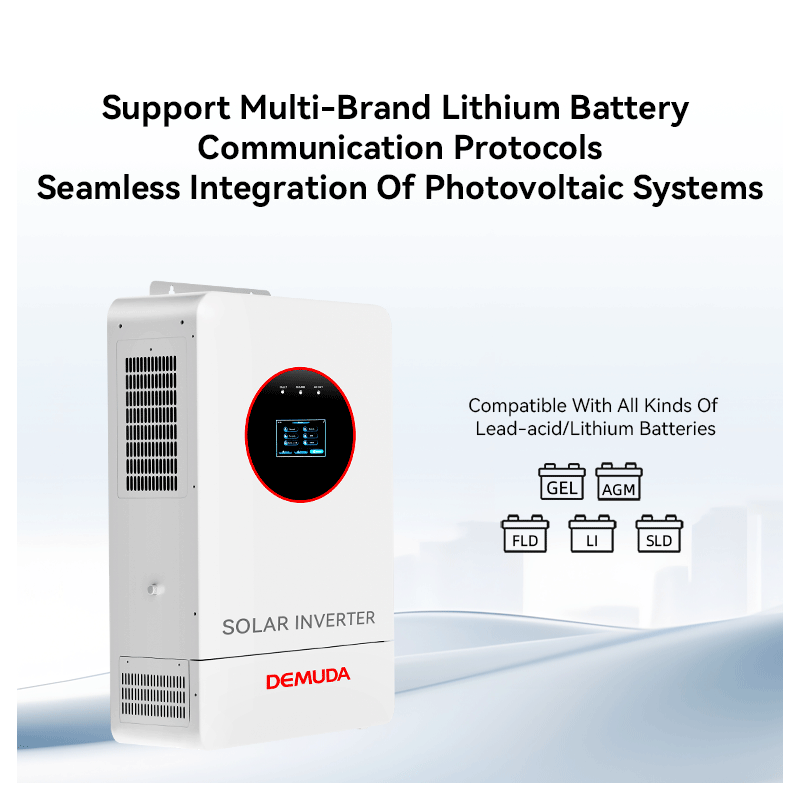

Battery type:Lead-acid or lithium batteries（Various brands）

Communicate:USB/RS485/WiFi/GPRS)/Dry node control

Quantity:

Inquire

Add to Basket Download

Product details

►Product Features

● Pure sine wave solar inverter(Optional on/off Grid)

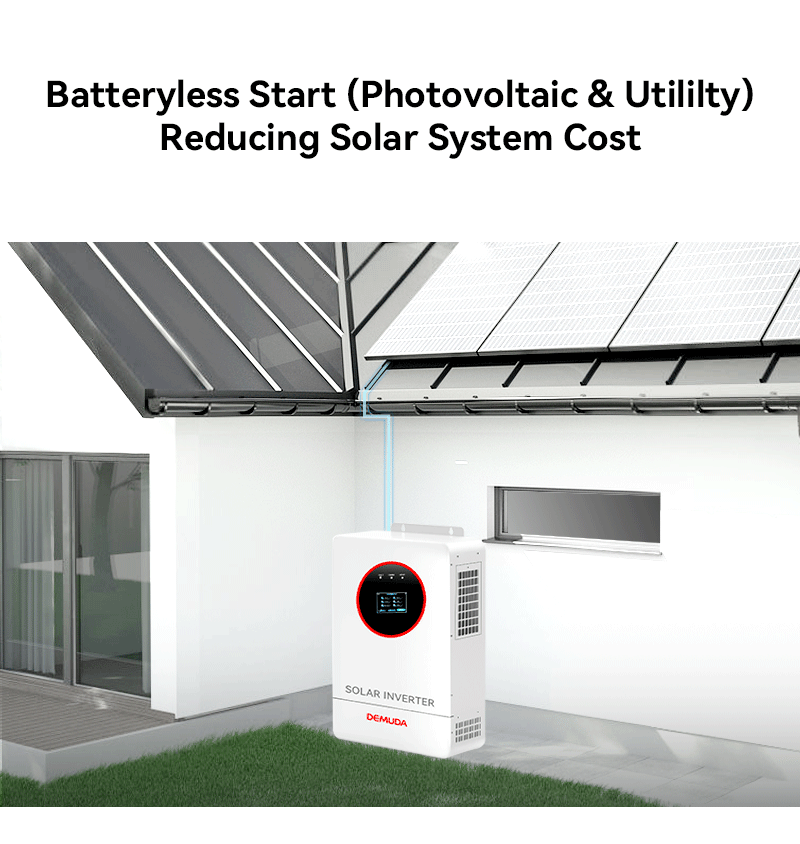

● Inverter can run without battery, One-key restorationto factory Settings

● Built-in Lithium battery automatic activation

● WIFI&GPRS available for IOS and Android

● Built-in MPPT Solar charge

● High PV input voltage range

● Built-in anti-dust kit for harsh environment

● Smart battery charge design to optimize battery life

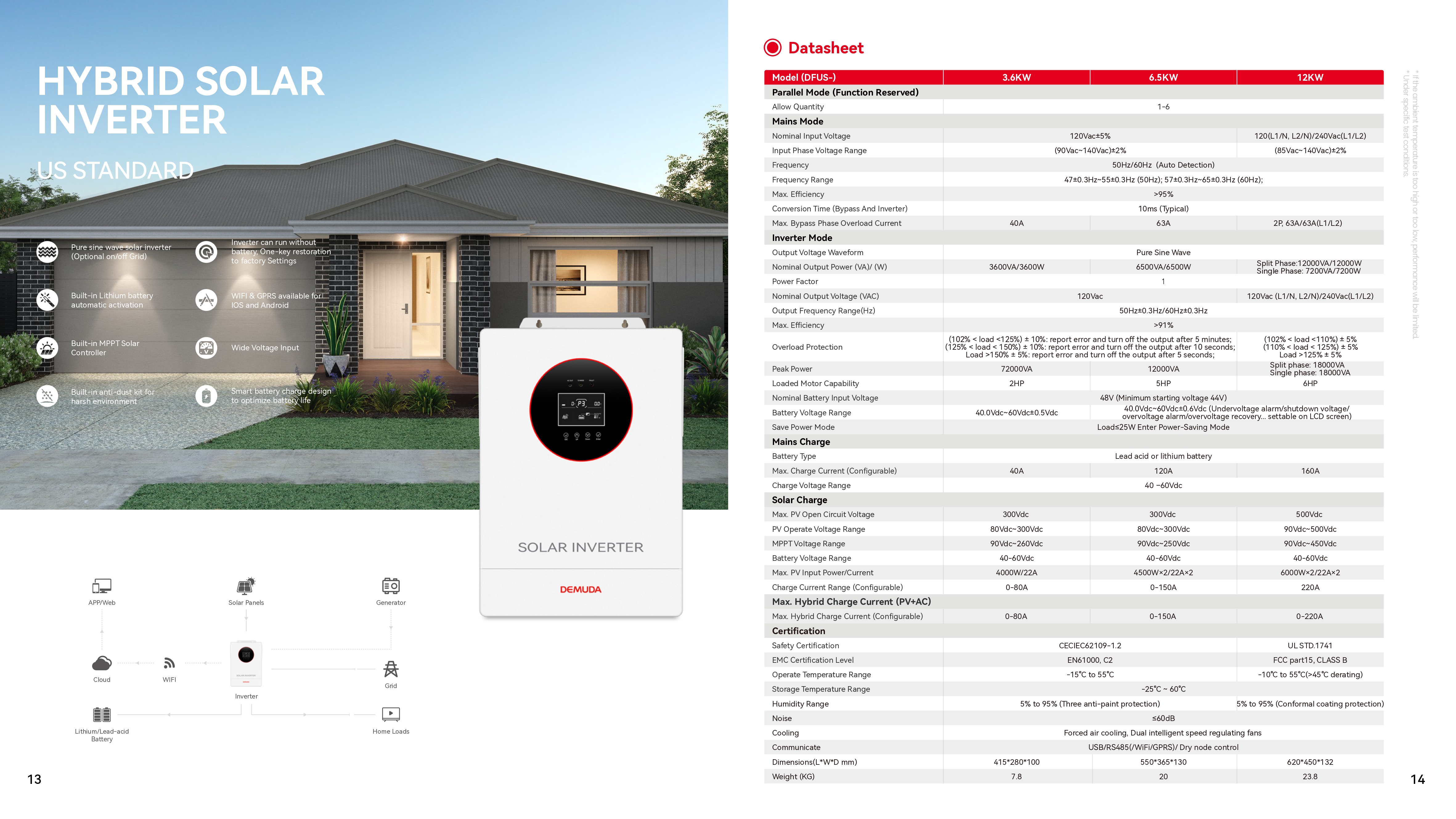

►Product Parameters

Model (DFUS-)	3.6KW	6.5KW	12KW
Parallel Mode (Function Reserved)

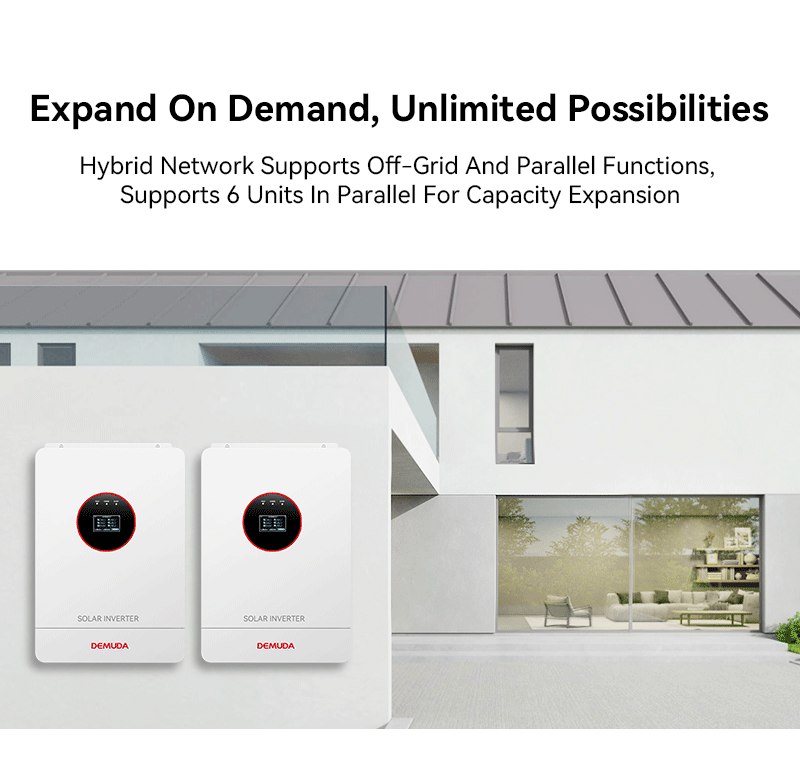

Allow Quantity	1 - 6
Mains Mode

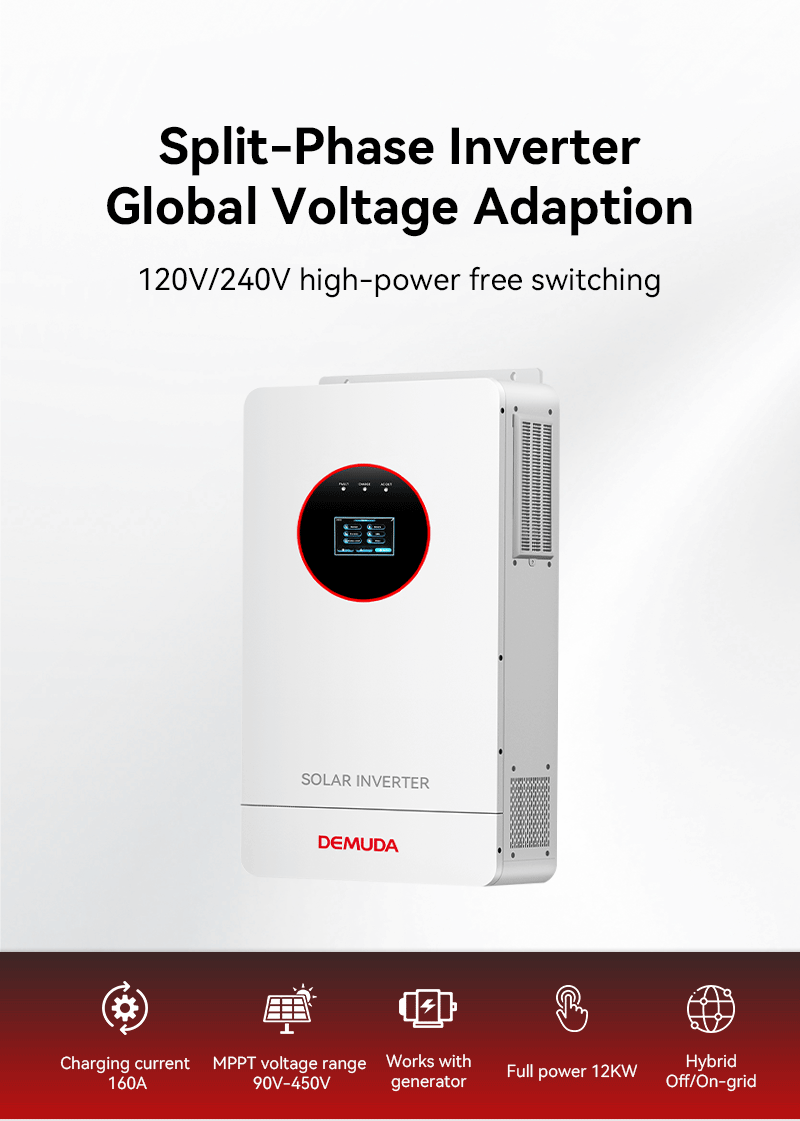

Nominal Input Voltage	120Vac±5%		120(L1/N,L2/N）/240Vac(L1/L2)
Input Phase Voltage Range	(90Vac - 140Vac)±2%		(85Vac~140Vac)±2%
Frequency	50Hz /60Hz (Auto Detection)
Frequency Range	47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz);
Max. Efficiency	＞95%
Conversion Time (Bypass And Inverter)	10ms(Typical)
Max.Bypass Phase Overload Current	40A	63A	2P,63A/63A(L1/L2)
Inverter Mode
Output Voltage Waveform	Pure Sine Wave
Nominal Output Power (VA) / (W)	3600VA/3600W	6500VA/6500W	Split Phase:12000VA/12000W Single Phase: 7200VA/7200W
Power Factor	1
Nominal Output Voltage (VAC)	120Vac		120Vac (L1/N, L2/N)/240Vac(L1/L2)
Output Frequency Range(H2)	50Hz±0.3Hz/60Hz±0.3Hz
Max.Efficiency	>91%

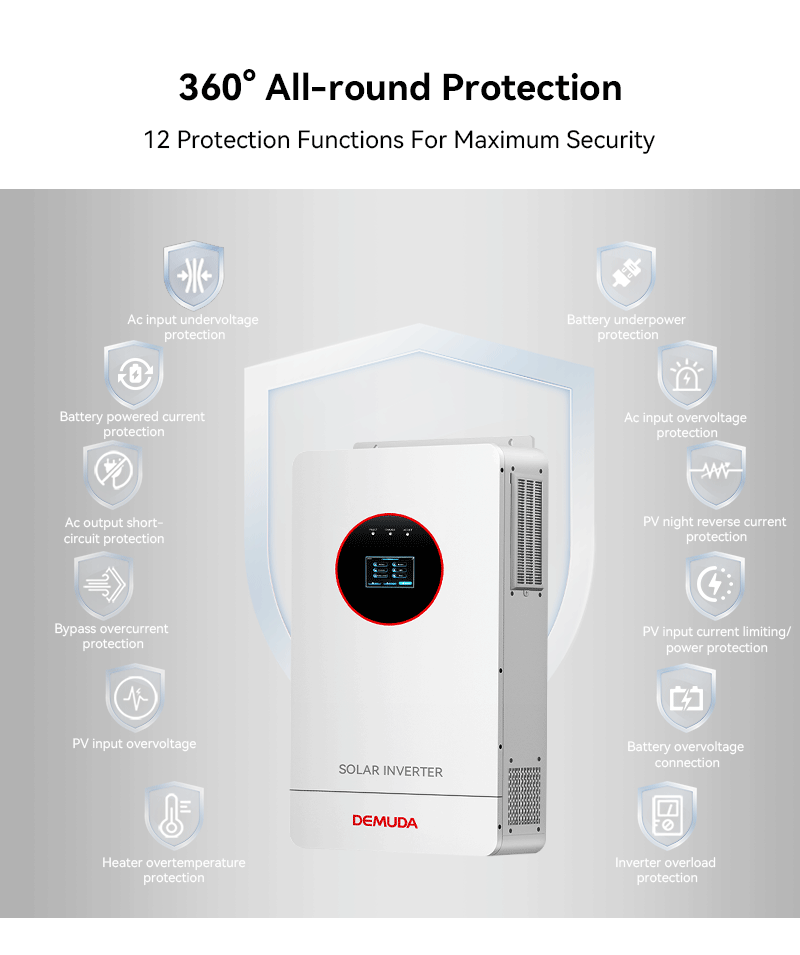

Overload Protection	(102% < load <125%) ± 10%: report error and turn off the output after 5 minutes; (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds; Load >150% ± 5%: report error and turn off the output after 5 seconds;		(110% < load < 125%) ± 5% Load >125% ± 5%
Peak Power	72000VA	12000VA	Splt phase: 18000VA Single phase:18000VA
Loaded Motor Capability	2HP	5HP	6HP
Nominal Battery Input Veltage	48V (Minimum starting voltage 44V)
Battery Voltage Range	40.0Vdc~60Vdc±0.5Vdc	40.0Vdc~60Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/ overvoltage alarm/overvoltage recovery... settable on LCD screen)
Save Power Mode	Load≤25W Enter Power - Saving Mode
Mains Charge
Battery Type	Lead acid or lithium batter
Max.Charge Current(Configurable)	40A	120A	160A
Charge Voltage Range	40 - 60Vdc
Solar Charge
Max. PV Open Crouit Voltage	300Vdc	300Vdc	SOOVSC
PV Operate Volage Range	80Vdc - 300Vdc	80vdc - 300vdc	90vdc - 500vdc
MPPT Voltage Range	90Vdc - 260Vdc	90vdc - 250vdc	90Vdc - 450vdc
Battery Voltage Range	40 - 60Vdc	40 - 60Vdc	40 - 60Vdc
Max.PV Input Power/Current	4000W/22A	4500W×2/22A×2	6000W×2/22A×2
Charge Current Range (Configurable)	0 - 80A	0 - 150A	220A
Max.Hybrid Charge Current (PV + AC)
Max.Hybrid Charge Current (Configurable)	0 - 80A	0 - 150A	0 - 220A
Certification
Safety Certification	CECIEC62109 - 1.2		UL STD.1741
EMC Certification Level	EN61000.C2		FCC part15,CLASS B
Operate Temperature Range	-15℃ to 55℃		-10℃Cto 55°C(＞45℃C derating)
Storage Temperature Range	-25℃~60℃
Humidity Range	5% to 95% (Three anti - paint protection)		5% to 95% (Conformal coating protection)
Noise	≤60dB

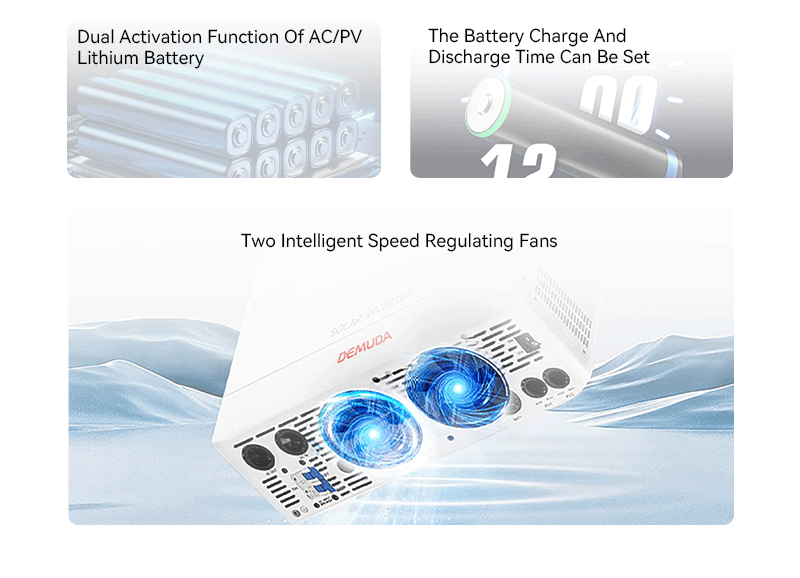

Cooling	Forced air cooling. Dual intelligent speed regulating fans
Communicate	USB/RS485/WIFI/GPRS/ Dry node control
Dimensions(L"W*Dmm)	415280100	550365130	620450132
Weight (NG)	7.8	20	23.8

►Product Details
