This 6V/12V/12.8V, 8Amp smart battery charger is suitable for multiple battery specifications and can flexibly cope with charging scenarios of different devices. Its size is exquisitely designed for easy storage and carrying. As a smart charger, it can automatically adjust the charging mode according to the battery type and status, and efficiently complete the charging process. At the same time, it has a reliable safety protection mechanism to provide stable protection for battery charging, whether it is daily maintenance or emergency charging, it can meet the use needs.
►Product Features
●One-Button repair mode charging: Use high and low frequency pulses to repair power drained batteries.(Only applicable to 12V lead-acid batteries, 6V and 12V lithium iron batteries are unavailable)

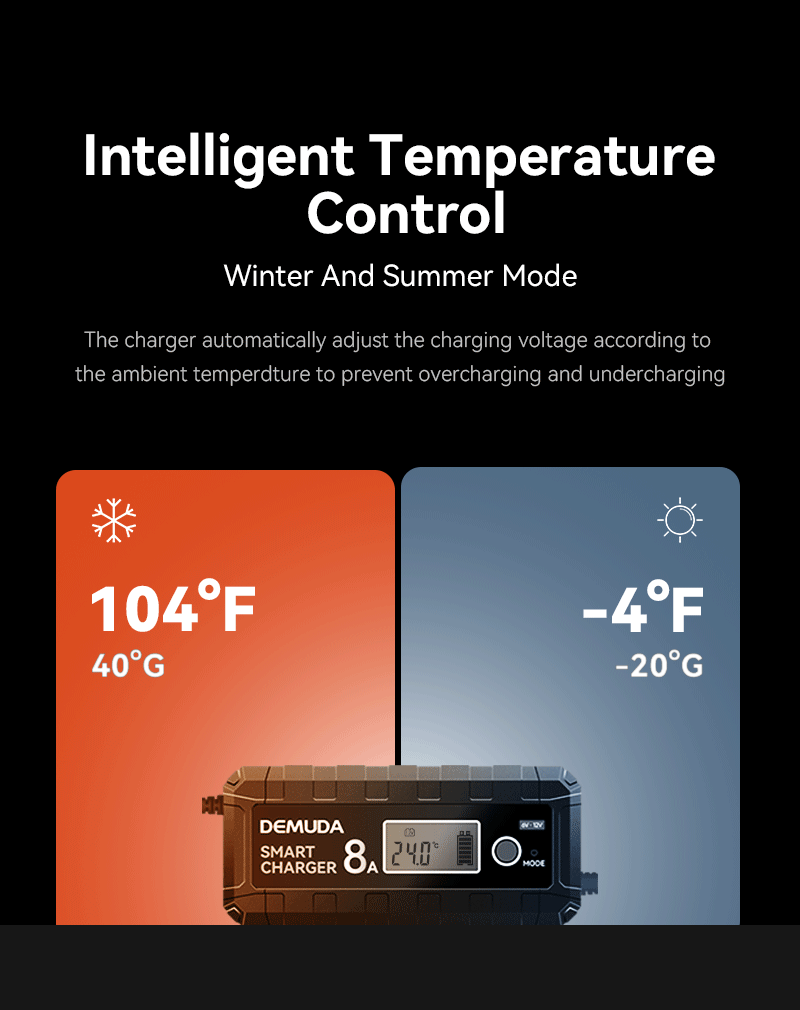

●Winter and summer mode: The charger automatically detects the ambient temperature and enters the corresponding mode to ensure that it is sufficient in winter and not overcharged in summer.

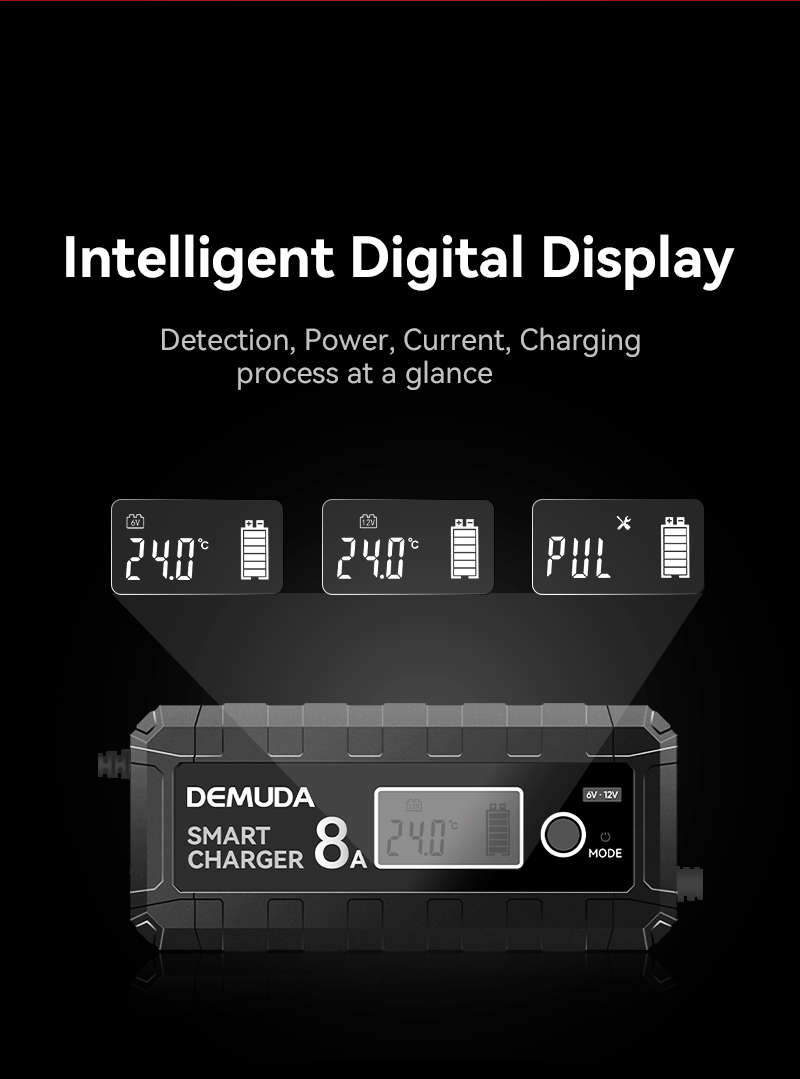

●Digital display: digital cycle displays the current voltage, current, power and ambient temperature.
●Short circuit protection: When the output cable of the charger is accidentally short-circuited, the machine automatically turns off.
●Reverse connection protection: When the polarity of the charger’s output line is reversed with that of the battery, the charger will automatically turn off the output and give aprompt. Alarm icon, automatically released after correct connection.

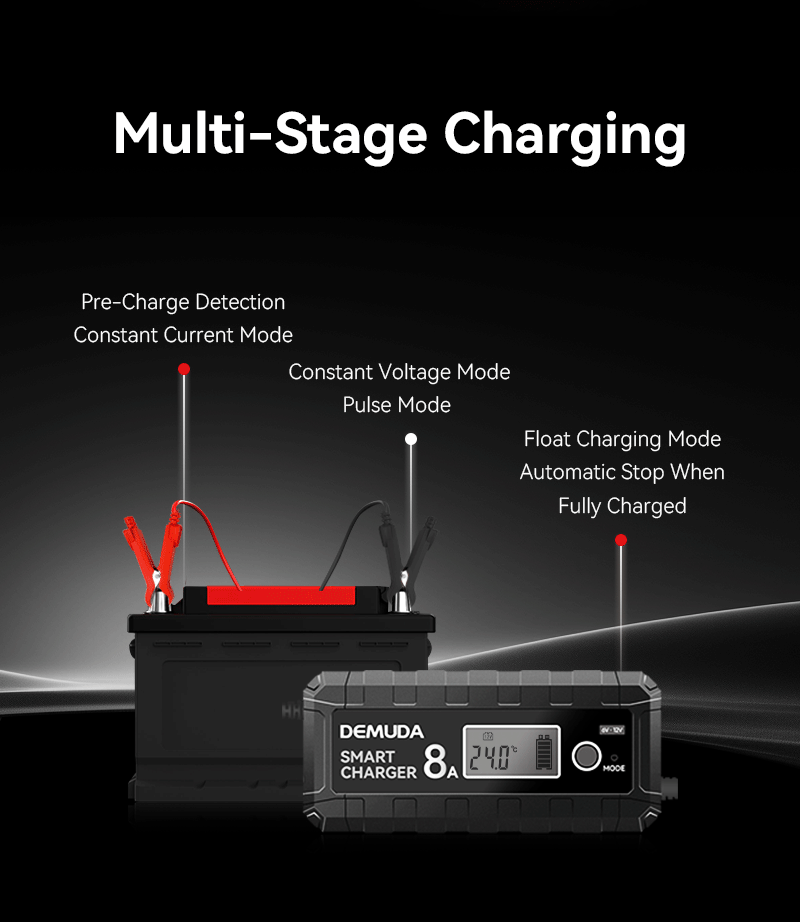

●Multi-stage charging: pre charge detection + constant current mode + constant voltage mode + pulse mode + float mode + full automatic stop.
►Product Parameters
| Model | DC-8 |

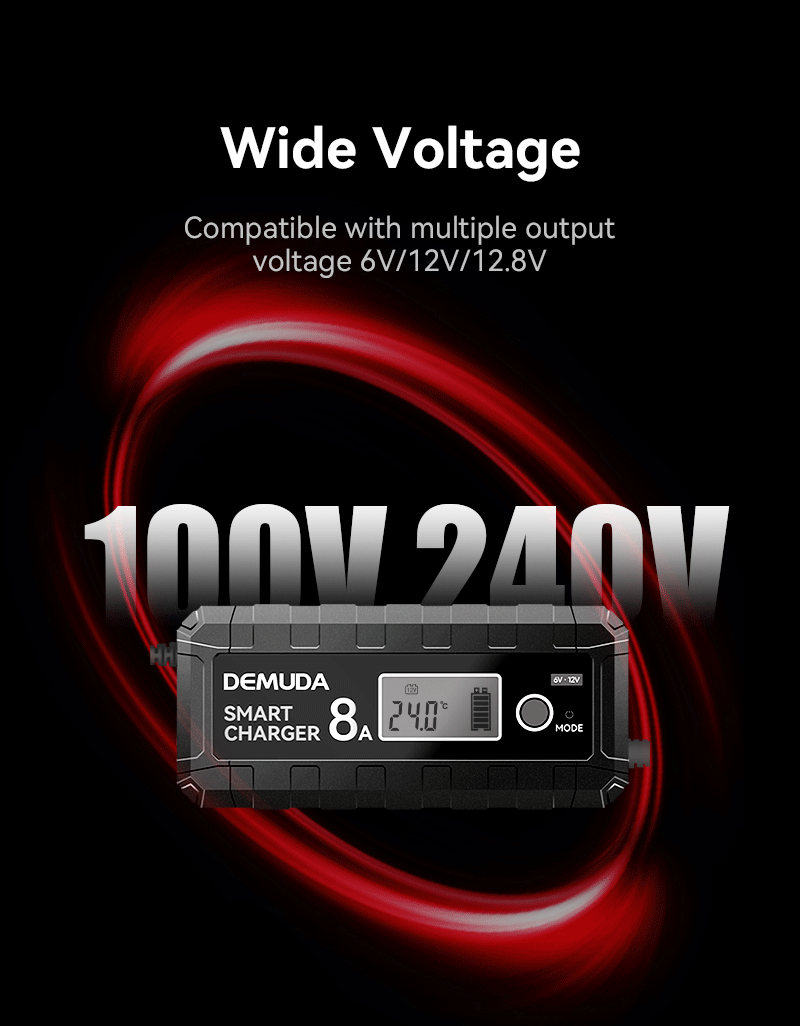

| Input Voltage | AC100-240V 50/60HZ |
| Output Voltage | DC7.2/14.4/14.6V+0.3V |
| Output Current | 6V:3A / 12V:8A / 12.8V:8A |
| Peak Power | AC100W |
| Efficiency | 85% |

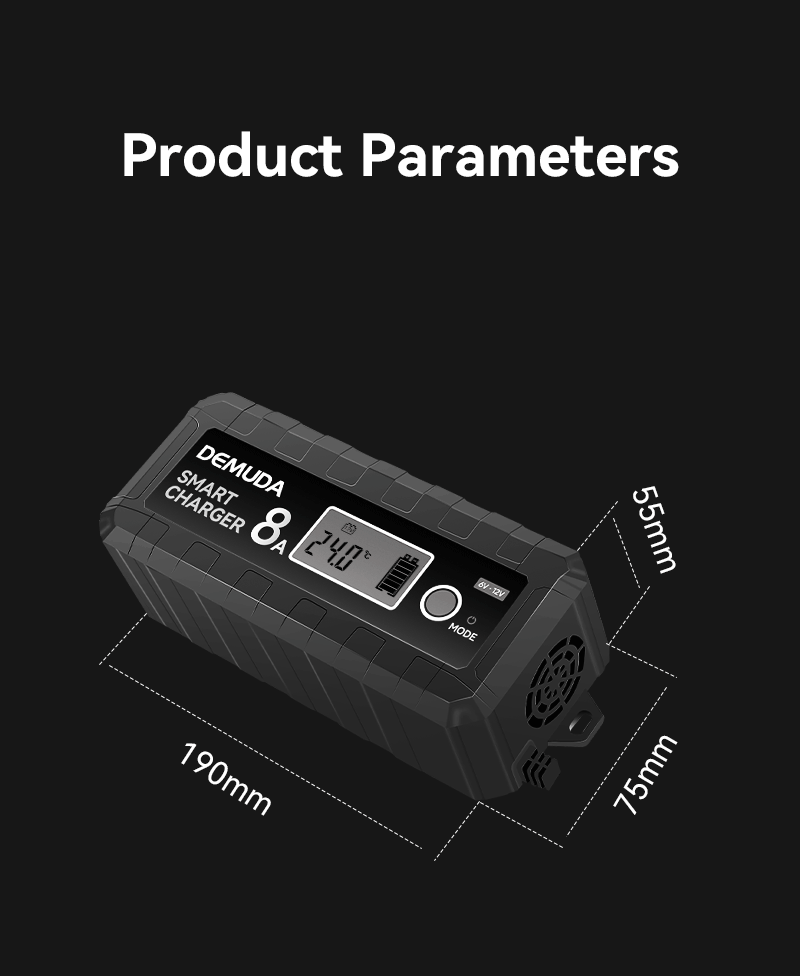

| Dimensions | 190*75*55 |
| Input Cable Length | 900mm |
| Output Cable Length | 650mm |
| Net Weight | 0.4kg |
| Battery Type | 6V/12V/Lithium Iron 12.8V4AH-100AH Battery |
►Product Details
